Assemble the Imager

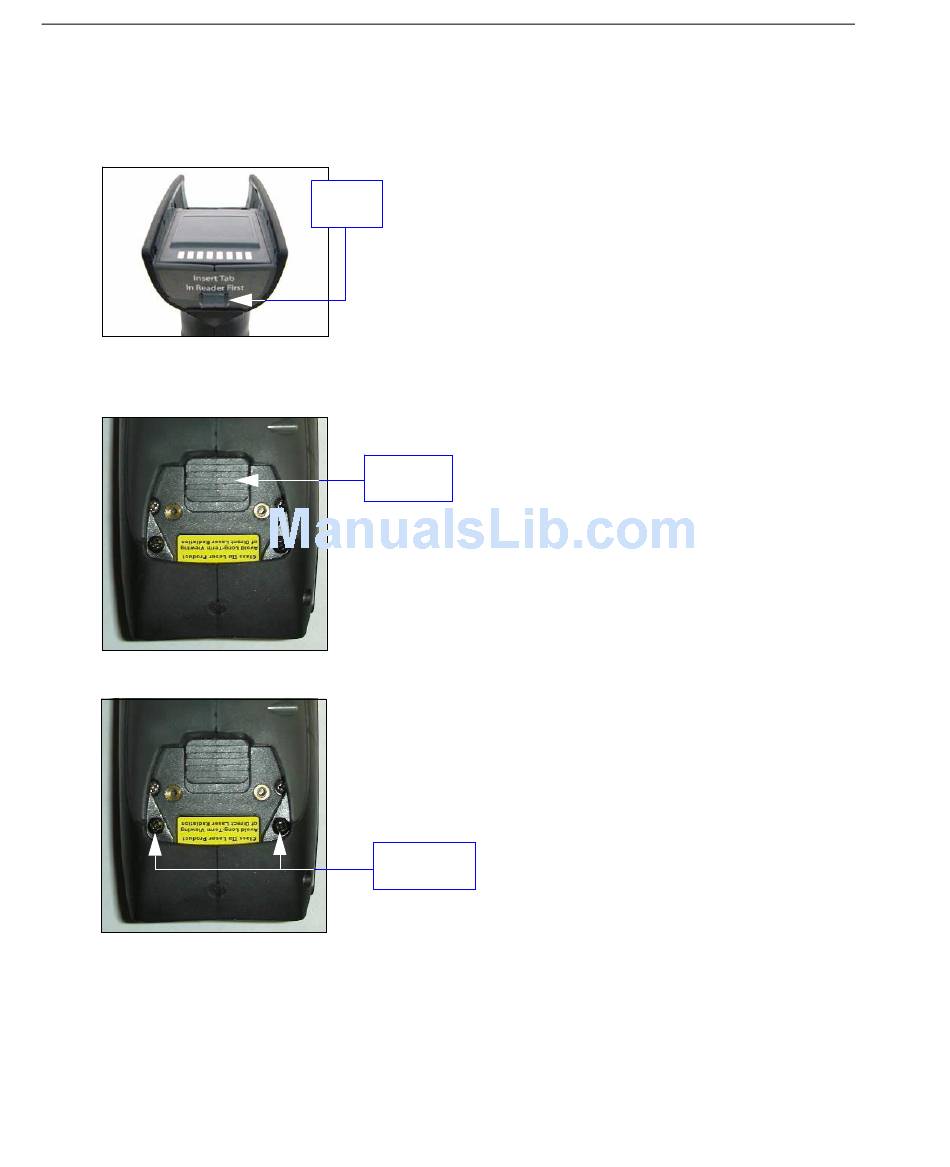

To assemble the MS-Q Imager with Battery Handle:
1. Insert the tab on the back of the battery handle into the imager's recessed slot at the
base of the battery bay.
2. Snap the imager onto the battery handle over the battery. Be sure that the underside
of the imager is latched at the front of the handle.
3. Secure the underside of the imager to the battery handle with the two screws provided.
1-4
Tab
Latch
Screws
