Error Messaging

This feature is used to validate that UII message streams are in the correct format. When
Error Messaging is enabled, the imager sends a message to the host indicating an error
every time a bad symbol is read. The table below shows examples of error messages.

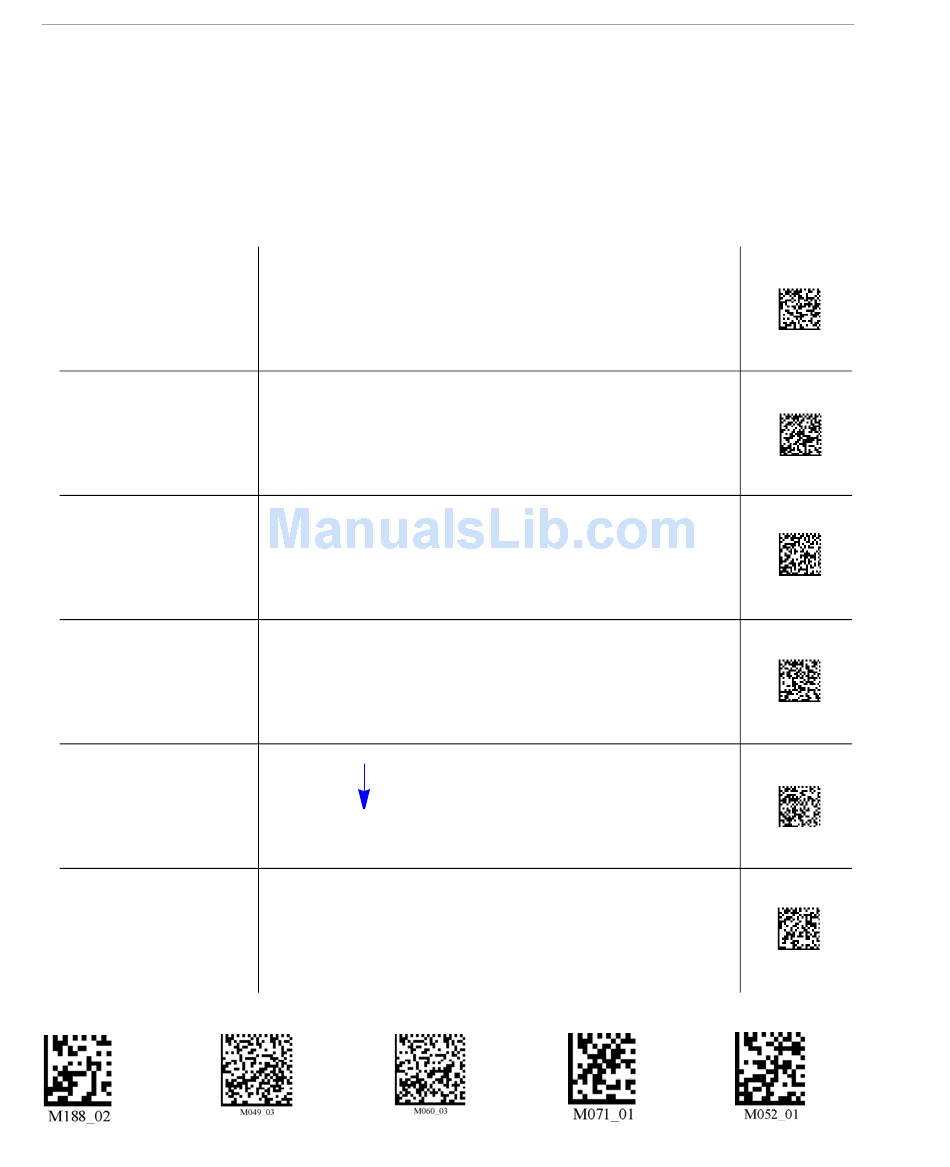

Examples of Error Messages
Invalid Format
Header
Invalid AI
Invalid DI
Invalid TEI
Space in Data
Qualifier
Lower Case
Characters
Save
Settings
10-6
[)>{RS}15{GS}800406141411A0B9C3D6{RS}{EOT}
Error message: "Invalid UII Format Header"
(01 + 21)
[)>{RS}05{GS}0100061414199999{GS}311A0B9C3D6{RS}{EOT}
Error message: "Invalid AI"
(UN + 12V + 1P + S)
[)>{RS}06{GS}12X077991289{GS}1P4202435{GS}S10936{RS}{EOT}
Error message: "Invalid DI"
(D + CAG + SER)
[)>{RS}DD{GS}CAX987654{GS}SERMKLJHUIYD{RS}{EOT}
Error message: "Invalid TEI"
[)>{RS}05{GS}8 0040614 1411 A0 B9 C3D6{RS}{EOT}
Error message: "Invalid AI (or DI or TEI depending on format in use)"
[)>{RS}05{GS}800406141411a0B9C3d6{RS}{EOT}
Error message: "Invalid Characters in Data"
Default
to USB
Unique Item Identifiers
Clear
Default
All Data
to PS/2
MS-Q Imager User's Manual
Clear
XML
Rules
