Bluetooth Interface

Note: The USB interface draws its power from the host computer.
Note: The Microscan Bluetooth modem defaults to a USB keyboard interface, and data is
displayed as if input from a keyboard.

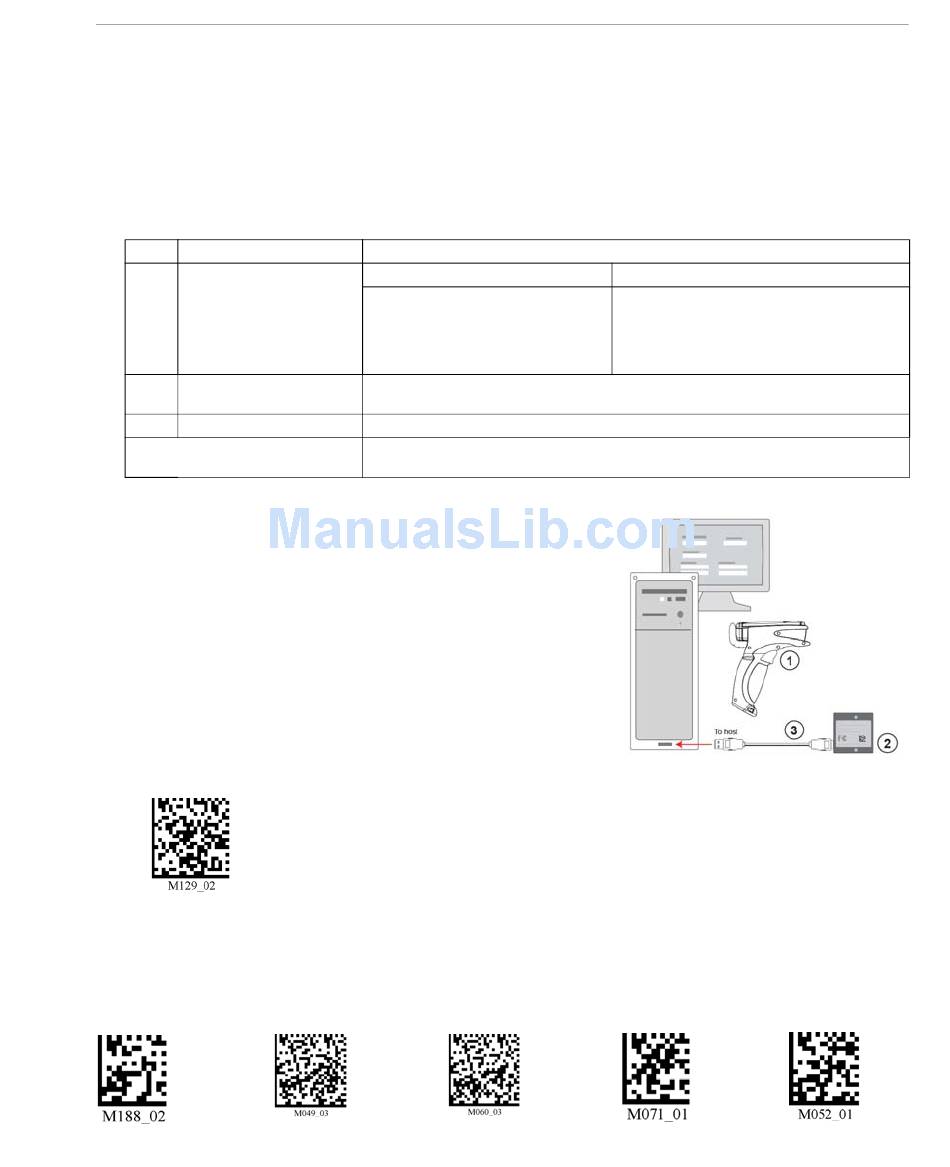

Bluetooth Configuration
Item Description
1 MS-Q Imager
USB Bluetooth Modem
2
(Default option)
3 USB Cable
Note: RS-232 options
also available
Installation Steps for Bluetooth
1. Connect the USB cable (3) from the host computer
to the Bluetooth Modem (2).
You DO NOT need to power off your host computer.
2. Open any program in the host computer that can
receive and display keyboard data.
3. Read the symbol on the Bluetooth modem's top
label (2).
4. Read the Save Settings symbol at the bottom of
this page.
You are now ready to send data to the host.
RF Two-Way Mode
Note: If you are using an older Bluetooth Modem, read the RF Two-Way Mode
symbol above to enable wireless communication with the host computer.
Note: See Connecting to the Bluetooth Modem via RS-232
on how to use the Bluetooth Modem with a serial connection.
Save
Settings
MS-Q Imager User's Manual
Rev 5 Hardware
Quadrus: FIS-6100-0033G, -0034G,
-0038G, -0039G, -0042G, -0043G,
-0044G, -0045G
Basic: FIS-6150-0023G, -0024G,
-0026G, -0027G
98-000076-10
Included with kit
98-000076-07, -08, -09
Default Default
to USB to PS/2
Part Number
Rev 6 Hardware
Quadrus: FIS-6100-0050G, -0054G
Basic: FIS-6150-0031G
Bluetooth Configuration
for instructions
Clear
All Data
Quick Start
Clear
XML
Rules
1-9
