Appendix I — MS-Q Bluetooth Modem

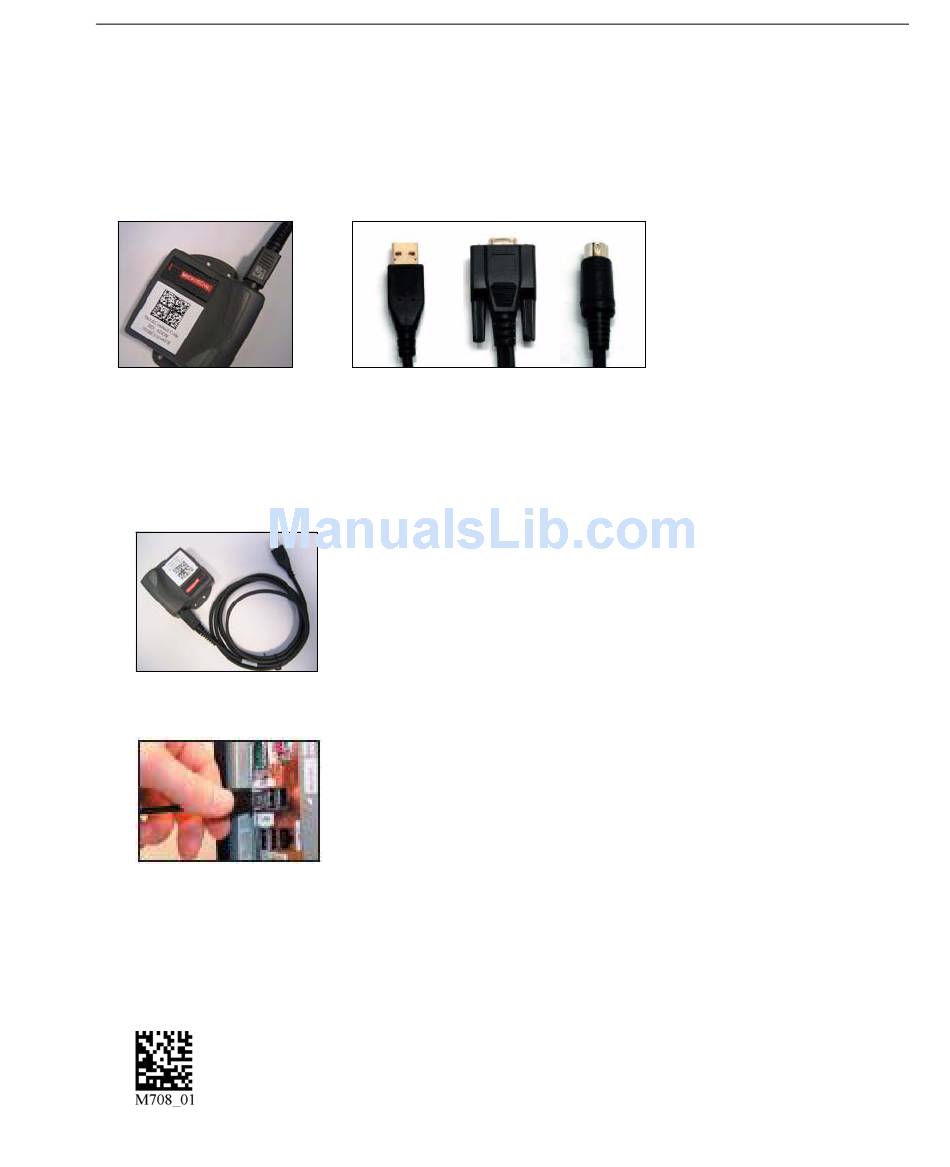

The MS-Q Bluetooth Modem is an external modem designed to be connected to the host
computer while using a Bluetooth-enabled MS-Q Imager. The modem enables the imager
to transmit captured and decoded data wirelessly to the host computer. The modem can
accommodate three different cable attachment types, as shown below.
Bluetooth Modem
with Cable
Bluetooth Modem Installation with USB Cable
Install Cable
• Attach the USB cable to the Bluetooth Modem.
• Connect the USB connector to the host computer. The modem's blue light will illuminate
when connected.
Read Quick Connect Code
• Read the Quick Connect Code on the Bluetooth Modem's top label.
Note: A Quick Connect Code can also be created in ESP's Utilities interface.
Establish Mode
• Read the USB Bluetooth Mode symbol below.
USB Bluetooth Mode
MS-Q Imager User's Manual
USB RS-232 PS/2
Appendices
A-65
