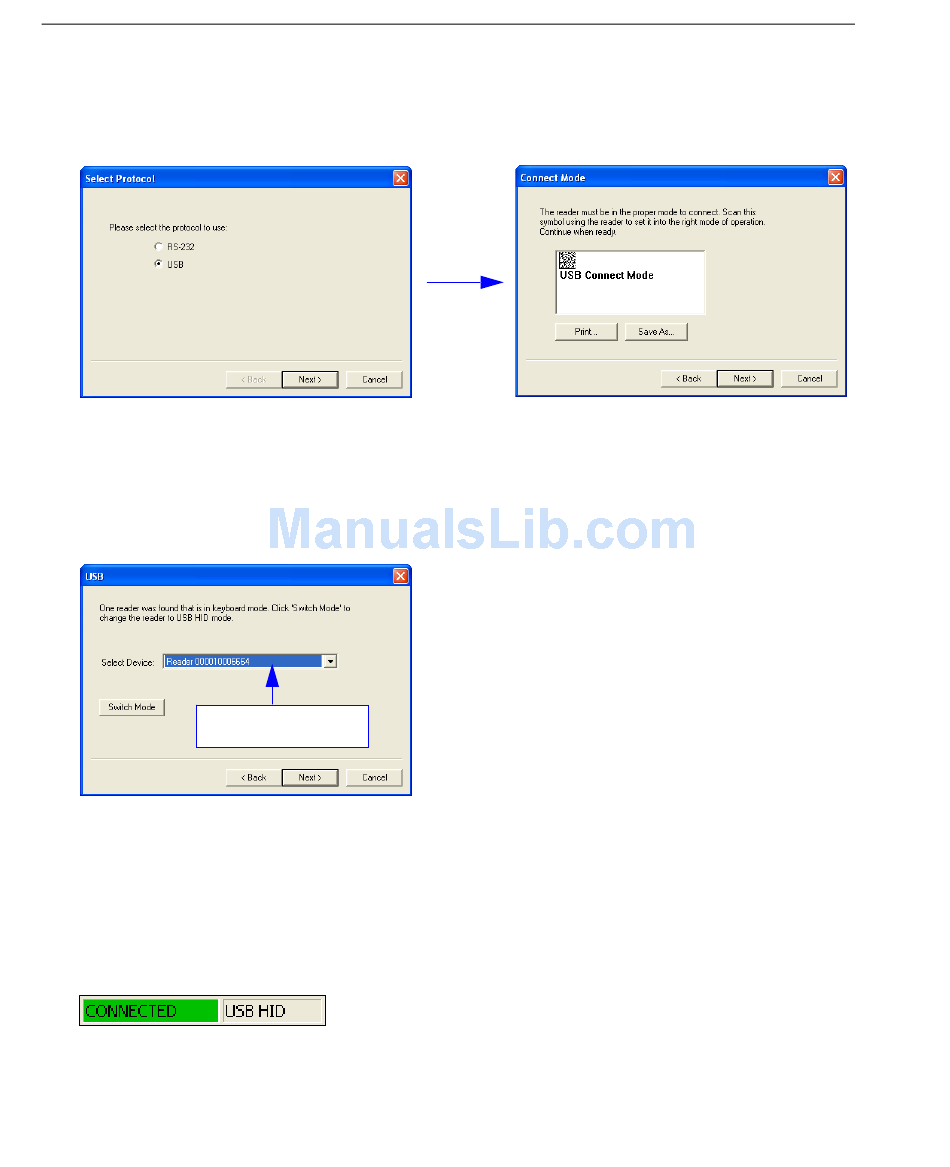

Select Protocol and Connect to Imager
USB
• In the Select Protocol dialog box, select the communications protocol you are using
and click Next.
• Print the USB Connect Mode symbol and read it with the imager to ensure that you are
in the correct communications mode. Keep the printed symbol in a convenient place for
future use.
• Click Next when you are finished.
The following dialog will then appear:
Imager ID number
• You will see a " Reader" ID number in the Select Device field. Click Next.
Note: If the imager is in the default USB Keyboard Mode when you attempt to connect,
the USB Reader ID dialog will tell you to click the Switch Mode button. ESP will attempt
to switch the imager to USB HID Mode. Once the imager has switched modes, click
Next.
• When you are connected successfully, the
green box in the status bar at the bottom right of the screen.
You are now ready to configure your imager using ESP. Subsequent sections provide
more detailed information about ESP's configuration options.
1-14
CONNECTED message will appear in a
