Select Quadrus Only or Standard Mode
Step 3 — Select Quadrus Only or Standard Mode
This feature is available for MS-Q Quadrus models only.
The firmware in the MS-Q Imager allows you to toggle easily between the specialized
Quadrus Only Mode that is preferred for DPM (Direct Part Marking) or the more generalized
Standard Mode.

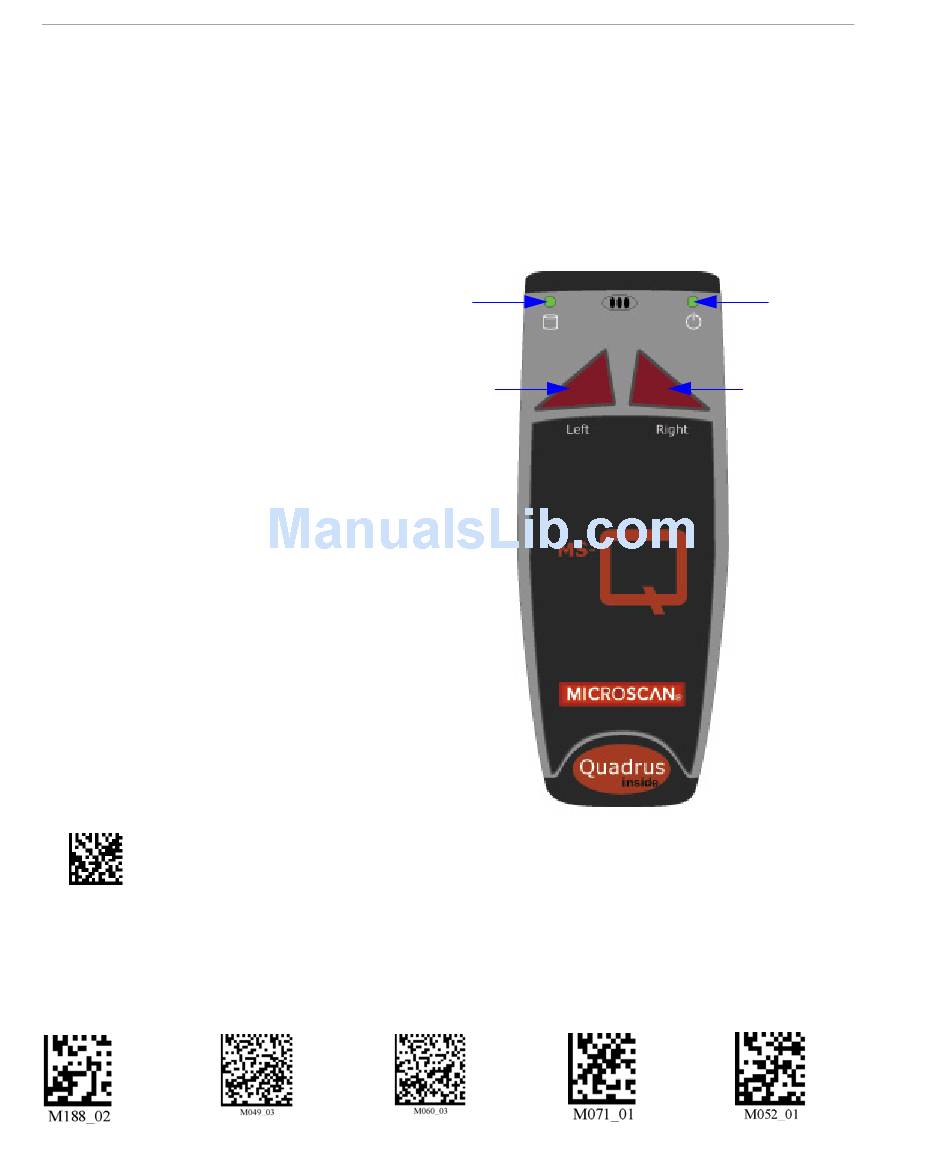

As with the MS-Q Basic, in its
default configuration, the MS-Q
Quadrus's right button and handle
also initiate reads; however, the
left button is used to toggle
between Quadrus Only and Standard
Modes.
When you press the left button
while in Quadrus Only Mode, you
will hear 3 beeps and see the left
indicator LED flash
This indicates the imager has
switched to Standard Mode.
When you press the left button
while in Standard Mode you will
again hear 3 beeps, but now the
left indicator LED flashes
3 times. This indicates the imager
has returned to Quadrus Only
Mode.
Note: Reprogramming the left button
disables mode shifting.
Test Symbol
ABCDEFGHIJKLMNOP
Save
Settings
3-4
Indicator
RED 3 times.
GREEN
Default
to USB
Left
Left
Button
Default
to PS/2
Right
Indicator
Right
Button
Clear
Clear
All Data
XML
Rules
MS-Q Imager User's Manual
