General Specifications
Appendix A — General Specifications
Mechanical
Height: 1.3" (33 mm)
Width: 1.8" (46 mm)
Depth: 4.3" (109 mm)
Weight: 4 oz. (113 g) (not including cable)
Cable: 6' (1.8 m)
Cabled:
Cabled w/ Imager:
With 1950 mAH Battery (Not
available with Rev 6 hardware):
With 1950 mAH Batt./Imager (Not
available with Rev 6 hardware):
With 3900 mAH Battery:
With 3900 mAH Batt./Imager:
Environmental
Operating temperature: 0° to 50°C
(32° to 122°F)
Storage temperature: –20° to 60° C
(–4° to 140°F)
Humidity: 5 to 90% (non-condensing)
CE Standards
Immunity: EN 55024
ESD: EN 61000-4-2
Radiated RF: EN 61000-4-3, ENV 50204, EFT EN
61000-4-4
Conducted RF Immunity: EN61000-4-6
Emissions: EN55022, Class B Radiated,
Class B Conducted
Light Collection Options
Sensor: CMOS, progressive scan, 1.33 MP (1024 x
1280). 256 gray scale
Standard Resolution Field of View:
Near: 21.5° horizontal by 16.2° vertical
Far: 22.9° horizontal by 11.6° vertical
Standard Resolution Focal Point:
Near: 4" (101.6 mm)
Far: 9" (228.6 mm)
High Resolution Focal Point:
Near: 2.75" (70 mm)
Far: 4.5" (115 mm)
Sensor Array:
Near Field: 1024 by 640 (Default)
Far Field: 1024 by 640 (Default)
Communication Protocols
Standard Interface: USB
Optional Interface: RS-232, Bluetooth Class 1 Radio at
328' (100m), PS/2
Image Output Options
Format: JPEG, BMP, Image Lock
A-2
Imager
Handle Weight
4.0 oz. (113 g)
7.2 oz. (204 g)
4.8 oz. (136 g)
8 oz. (227 g)
6.4 oz. (181 g)
9.6 oz. (272 g)

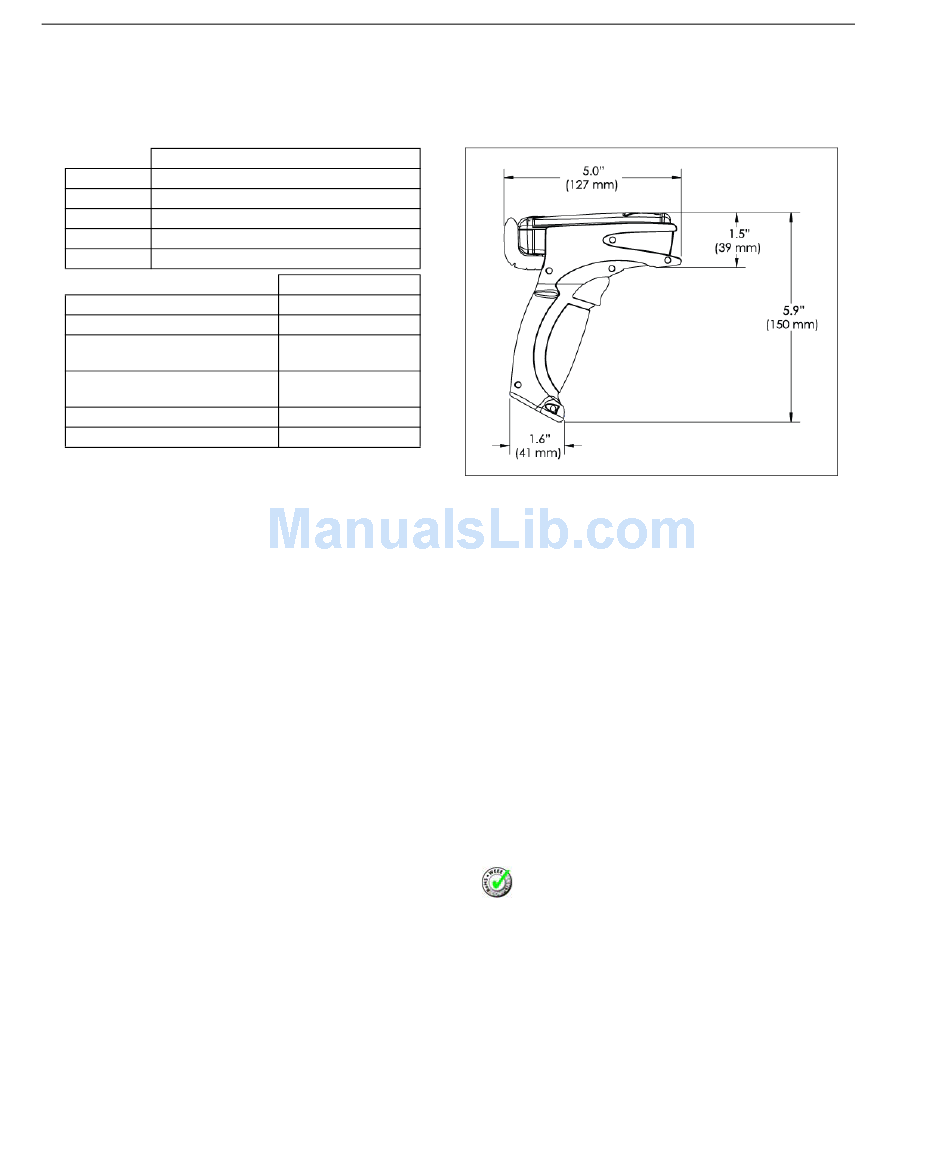

MS-Q Imager Dimensions
(Shown with H2 Handle Option)
Read Parameters
Pitch: ±60° (front to back); Skew: ±60°; Tilt: ±360°
Focal Range: 1 to 20" (25 to 508 mm)
Rotational Tolerance: ±180°
Print contrast Resolution: 25% (1D symbols); 35%
(PDF417); absolute dark/light reflectance differential,
measure at 650 nm.
Target Beam: Visible Laser Diode at 630 nm. Class 2
Ambient Light Immunity: Sunlight: Up to 9000 ft. candles,
96,890 lux
Shock: Withstands 100+ drops of 6.5' (2 meters) to concrete
Indicators
LEDs: Memory status, Battery power, Successful
decode, connection status
Programmable Indicators: Beep or Vibrate options
indicate imager operation and connection status
Safety Certifications
FCC, CE, RoHS/WEEE
ISO 9001:2000 Certification No. 06-1080
Issued by TüV USA
Copyright ©2009
Microscan Systems, Inc.
All rights reserved. Specifications subject to change.
Product specifications are given for typical performance
at 25°C (77°F) using grade A labels. Performance
characteristics may vary at high temperatures or other
environmental extremes. Warranty–One year limited
warranty on parts and labor. Extended warranty available.
MS-Q Imager User's Manual
