Microscan MS-Q Imager User Manual page 118

LightRay Optics
Setup
Choose
Field of View
Set Up
Illumination

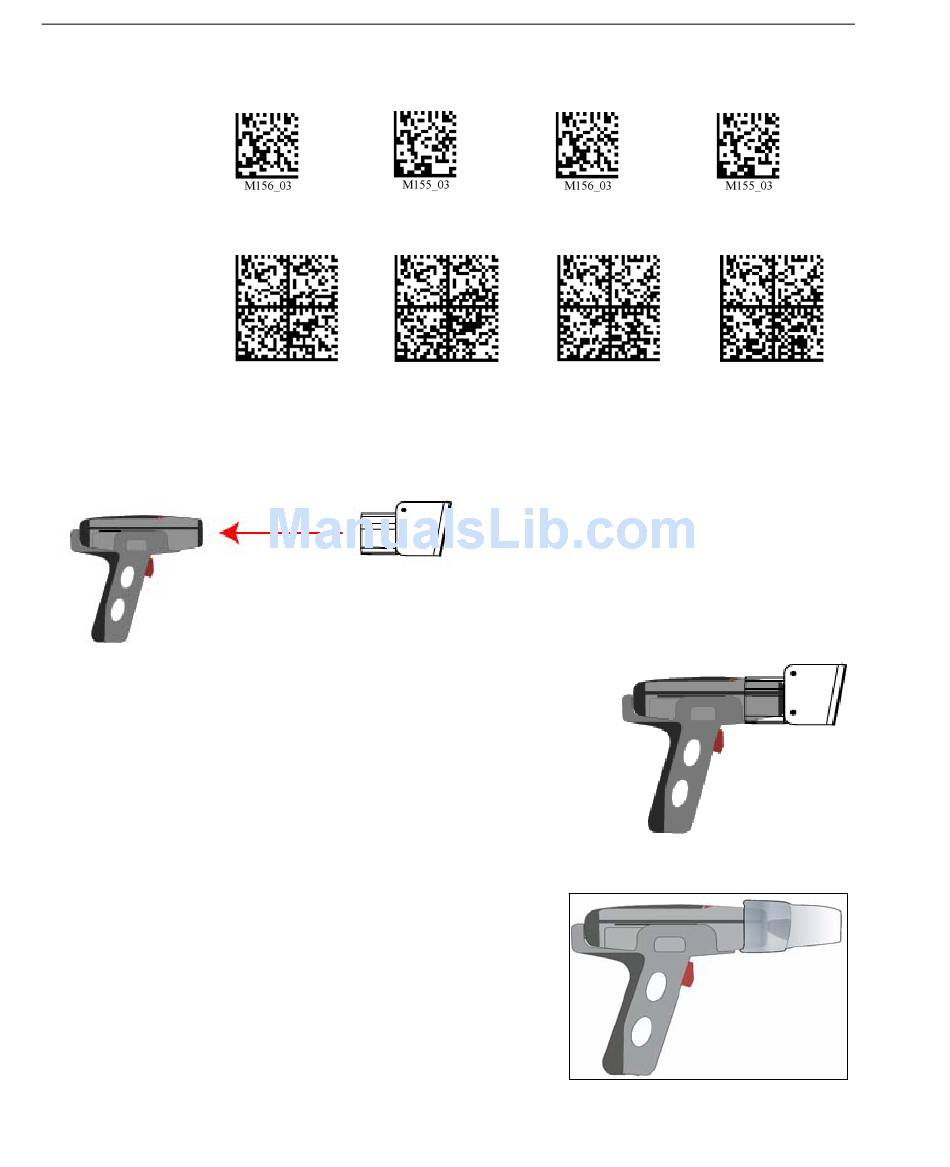

Assembly (100 Series)
• The plastic body of the LightRay Optics device should be
pressed firmly against the face of the imager, allowing
minimum slippage.
• Be sure that the device and the imager's face are aligned
as precisely as possible.
Assembly (200 Series)
• Place the 200 Series LightRay Optics attachment
over the face of the MS-Q Imager.
• The plastic body of the LightRay Optic device
should be pressed firmly against the face of the
imager, allowing minimum slippage.
• But sure that the device and the imager's face are
aligned as precisely as possible.
6-12
Near Field High Far Field Standard
Resolution (100) Resolution (110)
Laser On, Laser Off,
LEDs On, 100% LEDs On, 100%
(100, 110) (100, 110)
Near Field High
Resolution (205)
Laser On,
Visible LEDs Off,
IR LEDs On, 100%
(205, 215)
• Place the 100 Series LightRay Optic
attachment over the face of the MS-Q
Imager.
MS-Q Imager User's Manual
Far Field Standard
Resolution (215)
Laser Off,
Visible Off,
IR On, 100%
(205, 215)
