Appendix H — MS-Q Battery Charger
The MS-Q Battery Charger Kit can be used with the battery handle option.
Battery Charger Kit
2
1
Battery Charger Installation Instructions
Installing the Power Cable
1. Connect the power
supply to the charger
by aligning the connector
on the power supply to
the power connector on
the bottom of the
charger.
2. Firmly press the power supply connector and the charger's power connector together.
3. Guide the power cable through the space provided on the end of the charger, as
shown above.
Installing the Modem
The charger is shipped with four screws
for attaching a Bluetooth Modem.
1. Turn the charger over so that the
base faces upward.
2. Place the Bluetooth Modem into the
charger with the 8-pin DIN connector
facing away from the battery charging
connectors.
3. Secure the modem with the four screws provided.
4. Attach the cable to the modem by aligning the 8-pin DIN connectors and pushing them
together firmly.
5. Guide the cable through the opening at the end of the charger that is aligned with the
8-pin DIN connector.
MS-Q Imager User's Manual

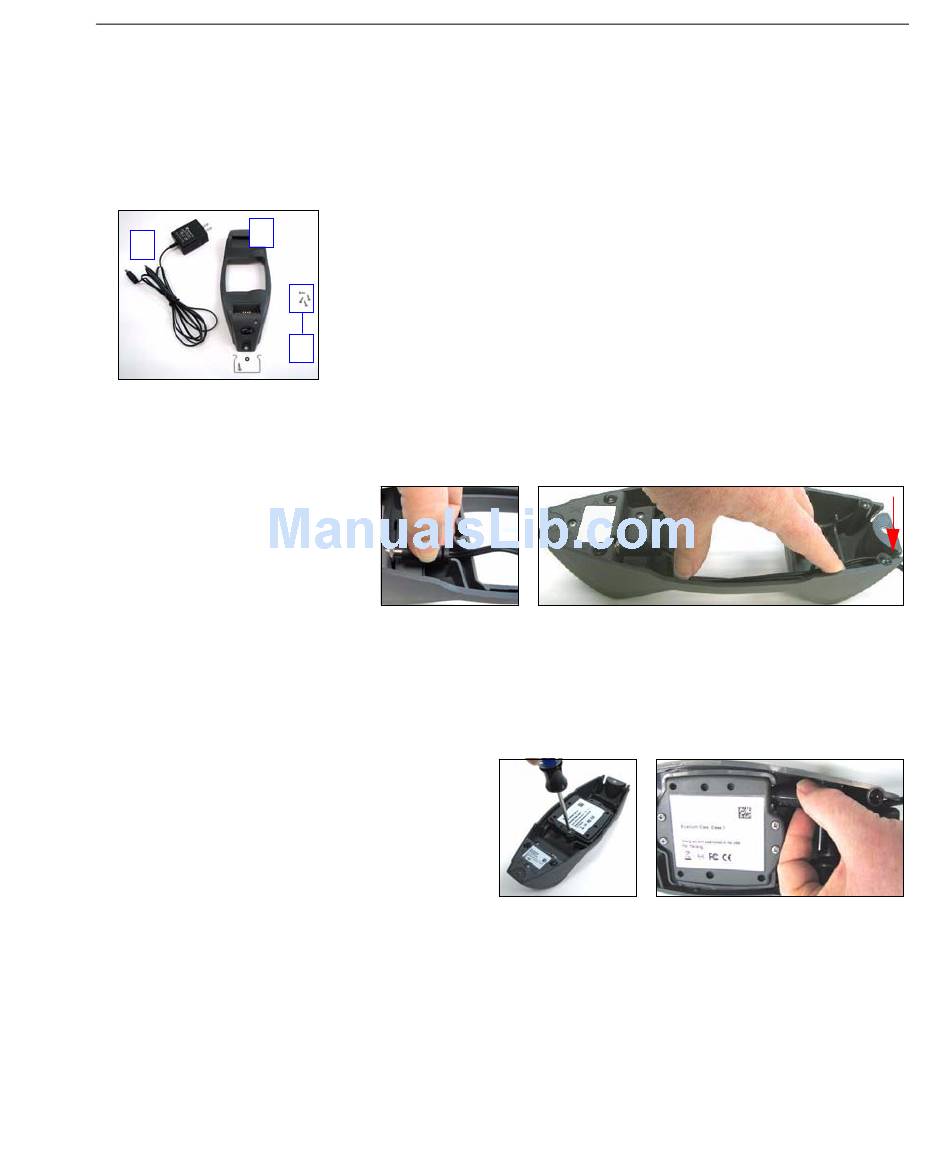

Battery Charger Kit (as pictured) includes:
(1.) Power Supply
(2.) Charger, Retainer Clip, screw, washer
(3.) 4 screws (for Bluetooth Modem)
3
Note: Battery Handle, Reader, Bluetooth Modem, and cable ordered
and sold separately.
Step 2 Step 3
Step 3
Appendices
Step 4
