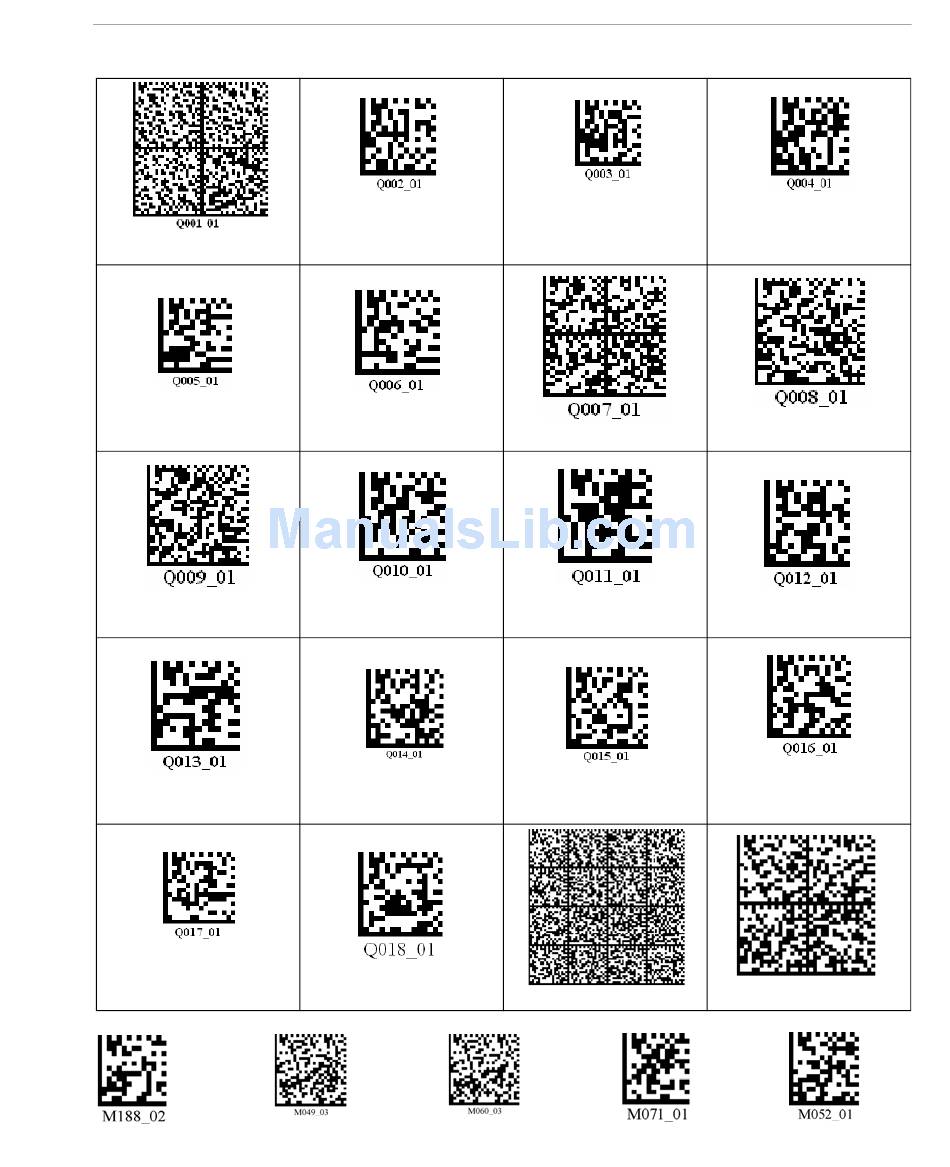

Microscan MS-Q Imager User Manual page 209

Enable Left Button Mode
Switching
ECC 0-140 On
Visible LEDs Off, IR LEDs
On (Near IR LEDs Off)
Disable Left and
Right Buttons
UII Enabled with Error
Messaging and Pass
Through
Save
Settings
MS-Q Imager User's Manual
Change IP Mode -
Quadrus Only Mode
ECC 0-140 Off
Control IR LEDs Separately
(Lower Intensity IR)
UII-Only Enabled
UII Disabled
Default
to USB
Change IP Mode -
Quadrus Mode 1
Default LEDs
Disable Left Button
UII-Only Enabled with
Error Messaging
Enable 2-Symbol Read
Clear
Default
All Data
to PS/2
Appendices
Change IP Mode -
Standard Mode
IR LEDs Off, Visible
LEDs On
Disable Right Button
UII Enabled with
Pass Through
Disable 2-Symbol Read
Clear
XML
Rules
A-39
