Keyboard Input (USB and PS/2)
The Bluetooth Modem is set to English-language keyboard mapping by default. To communicate
using a different keyboard setting, read the appropriate configuration symbol below.
English
Universal
(Default)

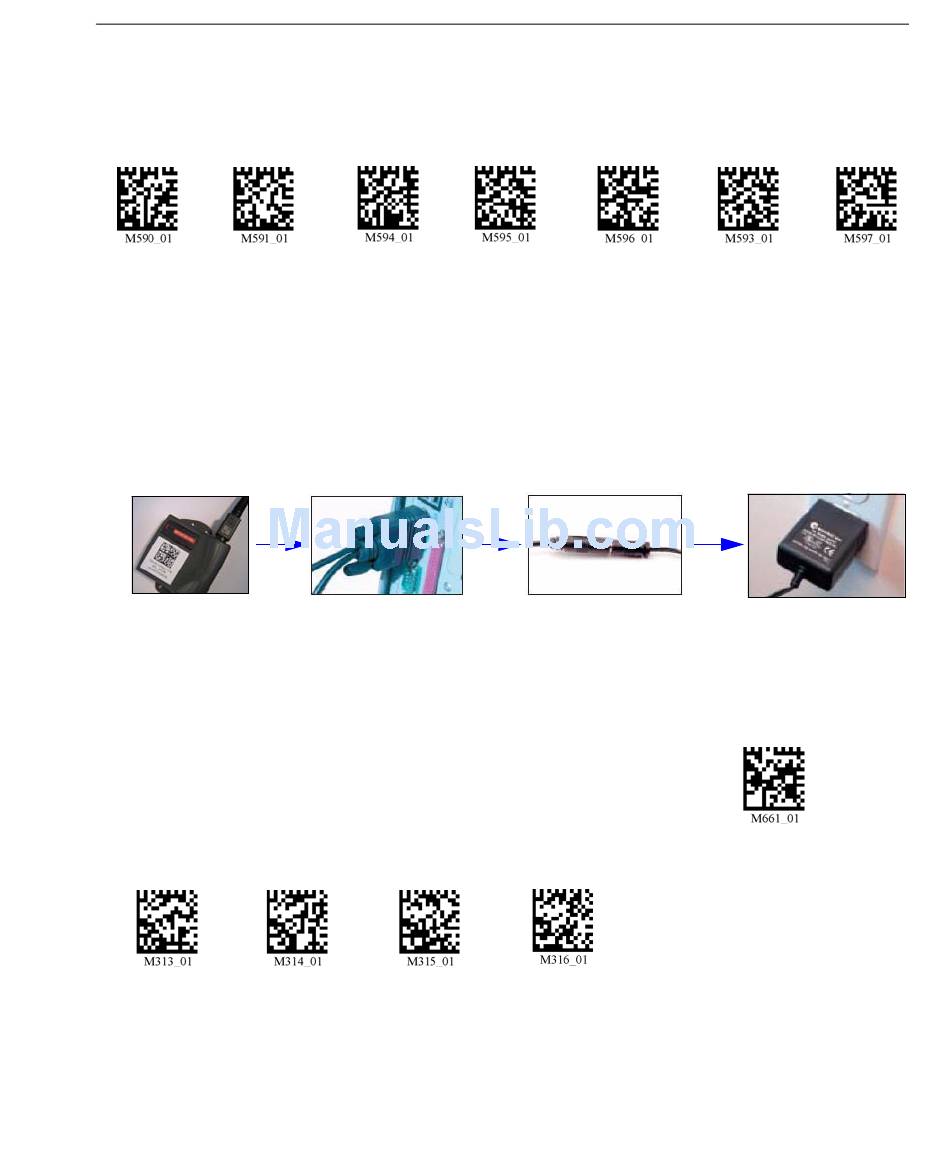

Bluetooth Modem Installation with RS-232 Cable
Install Cable
• Attach the RS-232 cable to the Bluetooth Modem.
• Connect the RS-232 adapter to the back of the host computer.
• Connect the RS-232 cable to the power supply.
• Plug the power supply into a wall socket.
Read Quick Connect Code
• Read the Quick Connect Code on the Bluetooth Modem's top label.
Note: A Quick Connect Code can also be created in ESP's Utilities interface.
Establish Mode
• Read the RS-232 Bluetooth Mode symbol at right.
Change Baud Rate Setting
• Read the appropriate symbol below to set the desired Baud Rate.
Note: These symbols only affect Baud Rate settings for the
modem. They have no effect on Baud Rate settings in the MS-Q.
1200 2400
You are now ready to begin sending decoded symbol data to the
host, using any open software application that accepts serial data.
MS-Q Imager User's Manual
French German
9600 (Default)
4800
No
Japanese
Leading
0
RS-232 Bluetooth
Modem Defaults:
Baud Rate: 9600
Data Bits: 8
Parity: None
Stop Bits: 1
Hardware: None
Appendices
Ctrl +
Char.
RS-232
Bluetooth
Mode
A-67
