1
PANEL DESCRIPTION

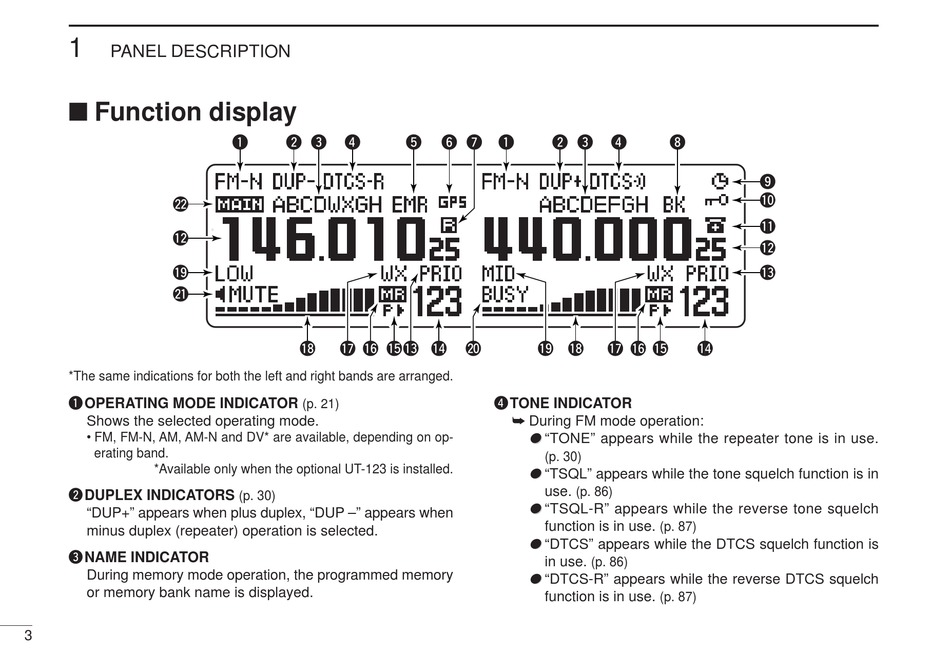

■ Function display

@2
!2
!9
@1
*The same indications for both the left and right bands are arranged.
q OPERATING MODE INDICATOR
Shows the selected operating mode.
• FM, FM-N, AM, AM-N and DV* are available, depending on op-
erating band.
*Available only when the optional UT-123 is installed.
w DUPLEX INDICATORS
"DUP+" appears when plus duplex, "DUP –" appears when
minus duplex (repeater) operation is selected.
e NAME INDICATOR
During memory mode operation, the programmed memory
or memory bank name is displayed.
3
!8 !7 !6 !5 !3
(p. 21)
(p. 30)
!4 @0 !9 !8 !7
r TONE INDICATOR
➥ During FM mode operation:
● "TONE" appears while the repeater tone is in use.
●
(p. 30)
● "TSQL" appears while the tone squelch function is in
●
use.
(p. 86)
● "TSQL-R" appears while the reverse tone squelch
●
function is in use.
● "DTCS" appears while the DTCS squelch function is
●
in use.
(p. 86)
● "DTCS-R" appears while the reverse DTCS squelch
●
function is in use.
o
!0
!1
!2
!3
!6 !5 !4
(p. 87)
(p. 87)
