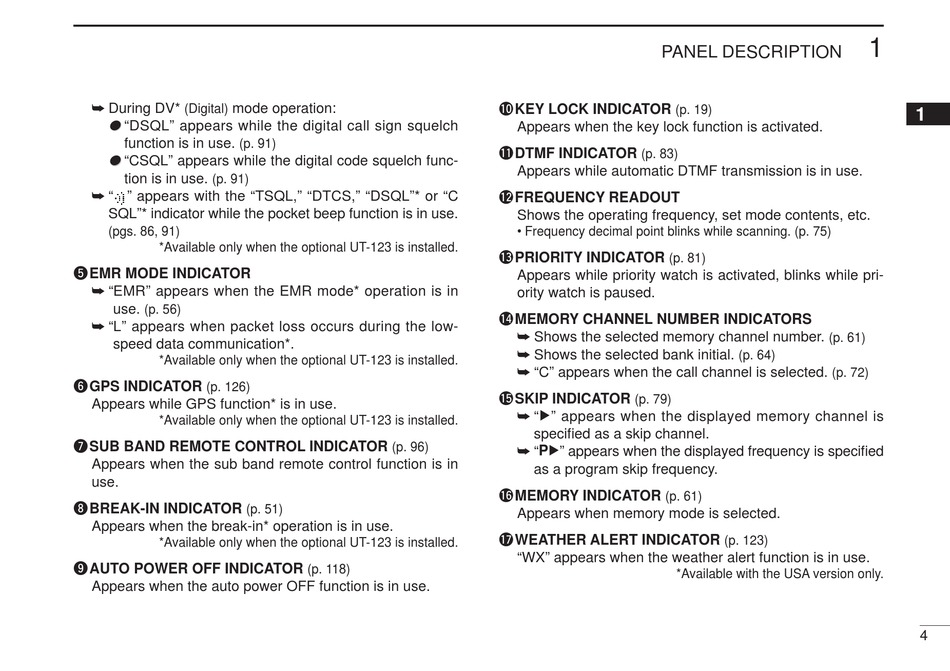

Icom IC-2820H Instruction Manual page 25

➥ During DV*
mode operation:
(Digital)
● "DSQL" appears while the digital call sign squelch
●
function is in use.
(p. 91)
● "CSQL" appears while the digital code squelch func-
●
tion is in use.
(p. 91)
➥ " " appears with the "TSQL," "DTCS," "DSQL"* or "C
SQL"* indicator while the pocket beep function is in use.
(pgs. 86, 91)
*Available only when the optional UT-123 is installed.
t EMR MODE INDICATOR
➥ "EMR" appears when the EMR mode* operation is in
use.
(p. 56)
➥ "L" appears when packet loss occurs during the low-
speed data communication*.
*Available only when the optional UT-123 is installed.
y GPS INDICATOR
(p. 126)
Appears while GPS function* is in use.
*Available only when the optional UT-123 is installed.
u SUB BAND REMOTE CONTROL INDICATOR
Appears when the sub band remote control function is in
use.
i BREAK-IN INDICATOR
(p. 51)
Appears when the break-in* operation is in use.
*Available only when the optional UT-123 is installed.
o AUTO POWER OFF INDICATOR
Appears when the auto power OFF function is in use.
(p. 96)
(p. 118)
PANEL DESCRIPTION
!0 KEY LOCK INDICATOR
(p. 19)
Appears when the key lock function is activated.
!1 DTMF INDICATOR
(p. 83)
Appears while automatic DTMF transmission is in use.
!2 FREQUENCY READOUT
Shows the operating frequency, set mode contents, etc.
• Frequency decimal point blinks while scanning. (p. 75)
!3 PRIORITY INDICATOR
(p. 81)
Appears while priority watch is activated, blinks while pri-
ority watch is paused.
!4 MEMORY CHANNEL NUMBER INDICATORS
➥ Shows the selected memory channel number.
➥ Shows the selected bank initial.
➥ "C" appears when the call channel is selected.
!5 SKIP INDICATOR
(p. 79)
➥ "≈" appears when the displayed memory channel is
specified as a skip channel.
➥ " P ≈" appears when the displayed frequency is specified
as a program skip frequency.
!6 MEMORY INDICATOR
(p. 61)
Appears when memory mode is selected.
!7 WEATHER ALERT INDICATOR
"WX" appears when the weather alert function is in use.
*Available with the USA version only.
