14
MENU SCREEN OPERATION

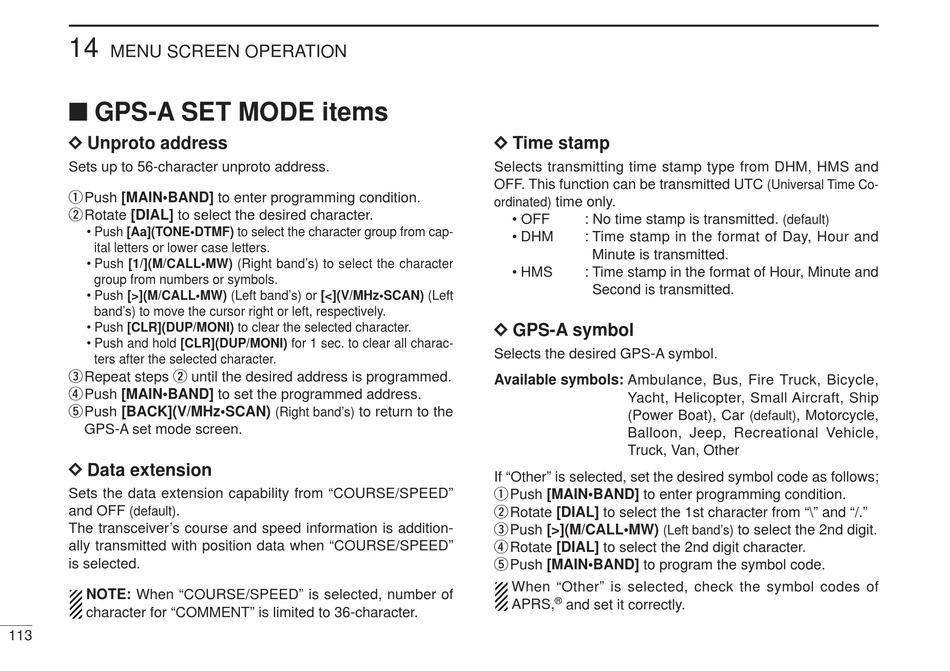

■ GPS-A SET MODE items

D D Unproto address
Sets up to 56-character unproto address.
q Push [MAIN•BAND] to enter programming condition.
wRotate [DIAL] to select the desired character.
• Push [Aa](TONE•DTMF) to select the character group from cap-
ital letters or lower case letters.
• Push [1/](M/CALL•MW) (Right band's) to select the character
group from numbers or symbols.
• Push [>](M/CALL•MW) (Left band's) or [<](V/MHz•SCAN) (Left
band's) to move the cursor right or left, respectively.
• Push [CLR](DUP/MONI) to clear the selected character.
• Push and hold [CLR](DUP/MONI) for 1 sec. to clear all charac-
ters after the selected character.
eRepeat steps w until the desired address is programmed.
r Push [MAIN•BAND] to set the programmed address.
tPush [BACK](V/MHz•SCAN)
GPS-A set mode screen.
D D Data extension
Sets the data extension capability from "COURSE/SPEED"
and OFF .
(default)
The transceiver's course and speed information is addition-
ally transmitted with position data when "COURSE/SPEED"
is selected.
NOTE: When "COURSE/SPEED" is selected, number of
character for "COMMENT" is limited to 36-character.
113
to return to the
(Right band's)
D D Time stamp
Selects transmitting time stamp type from DHM, HMS and
OFF. This function can be transmitted UTC
time only.
ordinated)
• OFF : No time stamp is transmitted.
• DHM : Time stamp in the format of Day, Hour and
Minute is transmitted.
• HMS : Time stamp in the format of Hour, Minute and
Second is transmitted.
D D GPS-A symbol
Selects the desired GPS-A symbol.
Available symbols: Ambulance, Bus, Fire Truck, Bicycle,
Yacht, Helicopter, Small Aircraft, Ship
(Power Boat), Car
Balloon, Jeep, Recreational Vehicle,
Truck, Van, Other
If "Other" is selected, set the desired symbol code as follows;
q Push [MAIN•BAND] to enter programming condition.
w Rotate [DIAL] to select the 1st character from "\" and "/."
e Push [>](M/CALL•MW)
(Left band's)
r Rotate [DIAL] to select the 2nd digit character.
t Push [MAIN•BAND] to program the symbol code.
When "Other" is selected, check the symbol codes of
®
APRS, and set it correctly.
(Universal Time Co-
(default)
, Motorcycle,
(default)
to select the 2nd digit.
