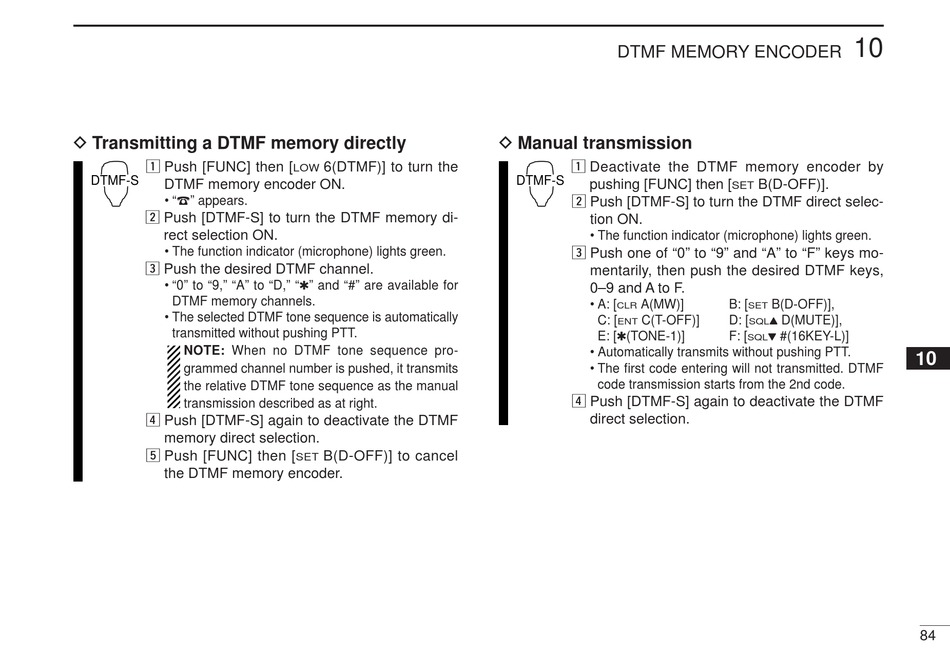

Icom IC-2820H Instruction Manual page 105

D Transmitting a DTMF memory directly
z Push [FUNC] then [
DTMF-S
DTMF memory encoder ON.
☎
• " " appears.
x Push [DTMF-S] to turn the DTMF memory di-
rect selection ON.
• The function indicator (microphone) lights green.
c Push the desired DTMF channel.
• "0" to "9," "A" to "D," "✱" and "#" are available for
DTMF memory channels.
• The selected DTMF tone sequence is automatically
transmitted without pushing PTT.
NOTE: When no DTMF tone sequence pro-
grammed channel number is pushed, it transmits
the relative DTMF tone sequence as the manual
transmission described as at right.
v Push [DTMF-S] again to deactivate the DTMF
memory direct selection.
b Push [FUNC] then [
the DTMF memory encoder.
6(DTMF)] to turn the
LOW
B(D-OFF)] to cancel
SET
DTMF MEMORY ENCODER
D Manual transmission
z Deactivate the DTMF memory encoder by
DTMF-S
pushing [FUNC] then [
x Push [DTMF-S] to turn the DTMF direct selec-
tion ON.
• The function indicator (microphone) lights green.
c Push one of "0" to "9" and "A" to "F" keys mo-
mentarily, then push the desired DTMF keys,
0–9 and A to F.
• A: [ A(MW)]
CLR
C: [ C(T-OFF)]
ENT
E: [✱(TONE-1)]
• Automatically transmits without pushing PTT.
• The first code entering will not transmitted. DTMF
code transmission starts from the 2nd code.
v Push [DTMF-S] again to deactivate the DTMF
direct selection.
10
B(D-OFF)].
SET
B: [ B(D-OFF)],
SET
D: [ D(MUTE)],
Y
SQL
F: [ #(16KEY-L)]
Z
SQL
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
84
