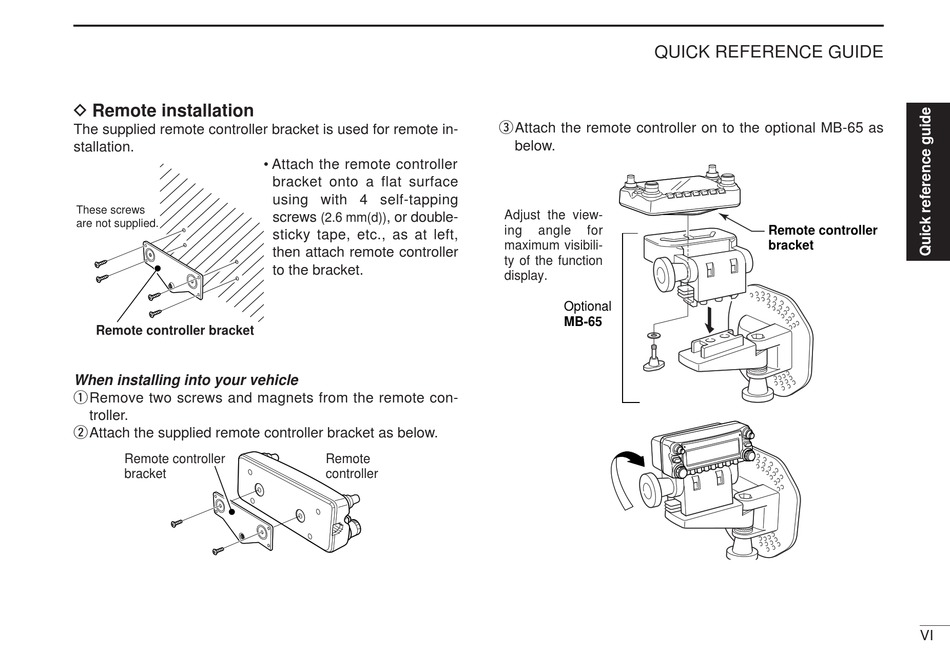

D Remote installation
The supplied remote controller bracket is used for remote in-
stallation.
These screws
are not supplied.
Remote controller bracket
When installing into your vehicle
qRemove two screws and magnets from the remote con-
troller.
wAttach the supplied remote controller bracket as below.
Remote controller
bracket
• Attach the remote controller
bracket onto a flat surface
using with 4 self-tapping
screws , or double-
(2.6 mm(d))
sticky tape, etc., as at left,
then attach remote controller
to the bracket.
Remote
controller
QUICK REFERENCE GUIDE
eAttach the remote controller on to the optional MB-65 as
below.
Adjust the view-
ing angle for
maximum visibili-
ty of the function
display.
Optional
MB-65
Remote controller
bracket
VI
