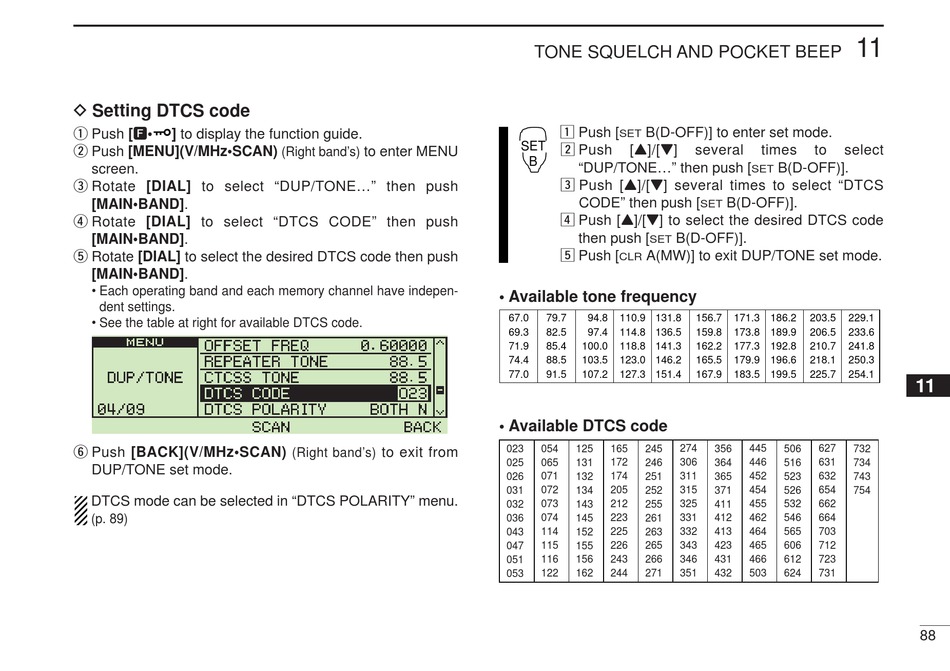

Icom IC-2820H Instruction Manual page 109

D Setting DTCS code
q Push [F•
] to display the function guide.
w Push [MENU](V/MHz•SCAN)
screen.
e Rotate [DIAL] to select "DUP/TONE..." then push
[MAIN•BAND].
r Rotate [DIAL] to select "DTCS CODE" then push
[MAIN•BAND].
t Rotate [DIAL] to select the desired DTCS code then push
[MAIN•BAND].
• Each operating band and each memory channel have indepen-
dent settings.
• See the table at right for available DTCS code.
y Push [BACK](V/MHz•SCAN)
DUP/TONE set mode.
DTCS mode can be selected in "DTCS POLARITY" menu.
(p. 89)
to enter MENU
(Right band's)
to exit from
(Right band's)
TONE SQUELCH AND POCKET BEEP
z Push [
B(D-OFF)] to enter set mode.
SET
SET
x Push
[Y]/[Z]
B
"DUP/TONE..." then push [
c Push [Y]/[Z] several times to select "DTCS
CODE" then push [
v Push [Y]/[Z] to select the desired DTCS code
then push [ B(D-OFF)].
SET
b Push [
A(MW)] to exit DUP/TONE set mode.
CLR
• Available tone frequency
67.0 79.7 94.8 110.9 131.8
69.3 82.5 97.4 114.8 136.5
71.9 85.4 100.0 118.8 141.3
74.4 88.5 103.5 123.0 146.2
77.0 91.5 107.2 127.3 151.4
• Available DTCS code
023 054 125 165 245
025 065 131 172 246
026 071 132 174 251
031 072 134 205 252
032 073 143 212 255
074 223 261
036 145
043 114 152 225 263
047 115 155 226 265
051 116 156 243 266
053 122 162 244 271
11
several times to select
B(D-OFF)].
SET
B(D-OFF)].
SET
156.7 171.3 186.2 203.5 229.1
159.8 173.8 189.9 206.5 233.6
162.2 177.3 192.8 210.7 241.8
165.5 179.9 196.6 218.1 250.3
167.9 183.5 199.5 225.7 254.1
274 356 445 506 627 732
306 364 446 516 631 734
311 365 452 523 632 743
315 371 454 526 654 754
325 455 662
411 532
331 412 462 546 664
332 413 464 565 703
343 423 465 606 712
346 431 466 612 723
351 432 503 624 731
