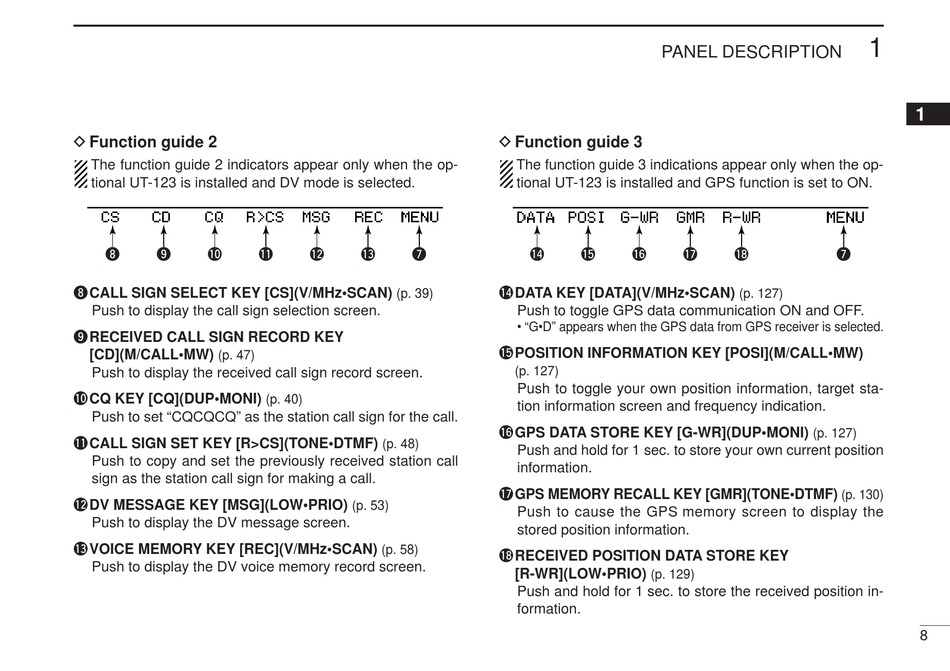

Icom IC-2820H Instruction Manual page 29

D Function guide 2
The function guide 2 indicators appear only when the op-
tional UT-123 is installed and DV mode is selected.
i o !0
i CALL SIGN SELECT KEY [CS](V/MHz•SCAN)
Push to display the call sign selection screen.
oRECEIVED CALL SIGN RECORD KEY
[CD](M/CALL•MW)
(p. 47)
Push to display the received call sign record screen.
!0 CQ KEY [CQ](DUP•MONI)
Push to set "CQCQCQ" as the station call sign for the call.
!1 CALL SIGN SET KEY [R>CS](TONE•DTMF)
Push to copy and set the previously received station call
sign as the station call sign for making a call.
!2 DV MESSAGE KEY [MSG](LOW•PRIO)
Push to display the DV message screen.
!3 VOICE MEMORY KEY [REC](V/MHz•SCAN)
Push to display the DV voice memory record screen.
!1 !2 !3 u
(p. 39)
(p. 40)
(p. 48)
(p. 53)
(p. 58)
PANEL DESCRIPTION
D Function guide 3
The function guide 3 indications appear only when the op-
tional UT-123 is installed and GPS function is set to ON.
!4 !5 !6
!4 DATA KEY [DATA](V/MHz•SCAN)
Push to toggle GPS data communication ON and OFF.
• "G•D" appears when the GPS data from GPS receiver is selected.
!5 P OSITION INFORMATION KEY [POSI](M/CALL•MW)
(p. 127)
Push to toggle your own position information, target sta-
tion information screen and frequency indication.
!6 GPS DATA STORE KEY [G-WR](DUP•MONI)
Push and hold for 1 sec. to store your own current position
information.
!7 GPS MEMORY RECALL KEY [GMR](TONE•DTMF)
Push to cause the GPS memory screen to display the
stored position information.
!8 R ECEIVED POSITION DATA STORE KEY
[R-WR](LOW•PRIO)
(p. 129)
Push and hold for 1 sec. to store the received position in-
formation.
!7 !8 u
(p. 127)
(p. 127)
(p. 130)
