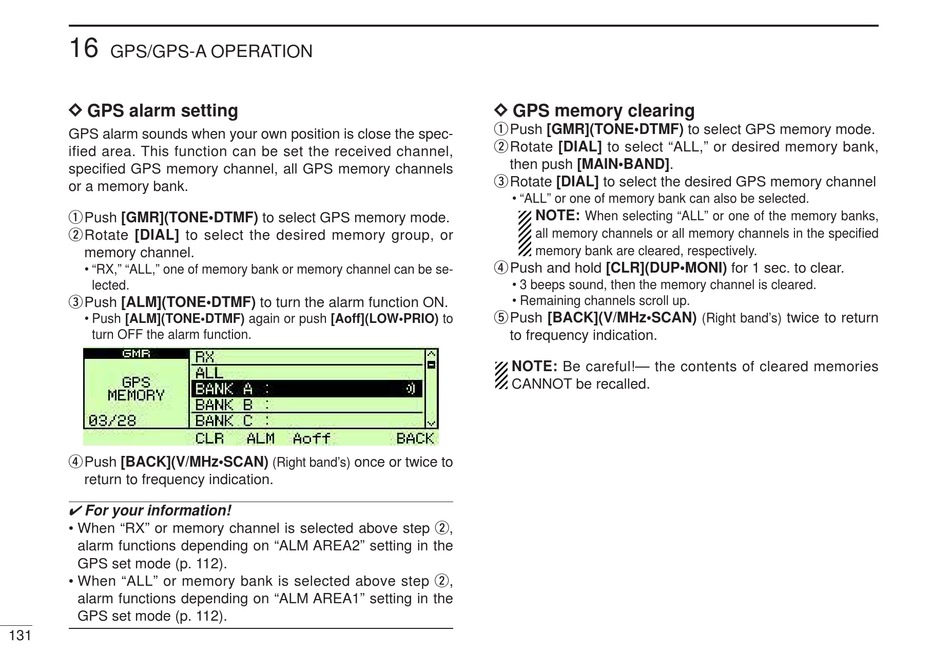

Icom IC-2820H Instruction Manual page 152

16
GPS/GPS-A OPERATION
D D GPS alarm setting
GPS alarm sounds when your own position is close the spec-
ified area. This function can be set the received channel,
specified GPS memory channel, all GPS memory channels
or a memory bank.
qPush [GMR](TONE•DTMF) to select GPS memory mode.
wRotate [DIAL] to select the desired memory group, or
memory channel.
• "RX," "ALL," one of memory bank or memory channel can be se-
lected.
ePush [ALM](TONE•DTMF) to turn the alarm function ON.
• Push [ALM](TONE•DTMF) again or push [Aoff](LOW•PRIO) to
turn OFF the alarm function.
rPush [BACK](V/MHz•SCAN)
return to frequency indication.
✔ For your information!
• When "RX" or memory channel is selected above step w,
alarm functions depending on "ALM AREA2" setting in the
GPS set mode (p. 112).
• When "ALL" or memory bank is selected above step w,
alarm functions depending on "ALM AREA1" setting in the
GPS set mode (p. 112).
131
once or twice to
(Right band's)
D D GPS memory clearing
qPush [GMR](TONE•DTMF) to select GPS memory mode.
wRotate [DIAL] to select "ALL," or desired memory bank,
then push [MAIN•BAND].
eRotate [DIAL] to select the desired GPS memory channel
• "ALL" or one of memory bank can also be selected.
NOTE:
When selecting "ALL" or one of the memory banks,
all memory channels or all memory channels in the specified
memory bank are cleared, respectively.
r Push and hold [CLR](DUP•MONI) for 1 sec. to clear.
• 3 beeps sound, then the memory channel is cleared.
• Remaining channels scroll up.
tPush [BACK](V/MHz•SCAN)
to frequency indication.
NOTE: Be careful!— the contents of cleared memories
CANNOT be recalled.
twice to return
(Right band's)
