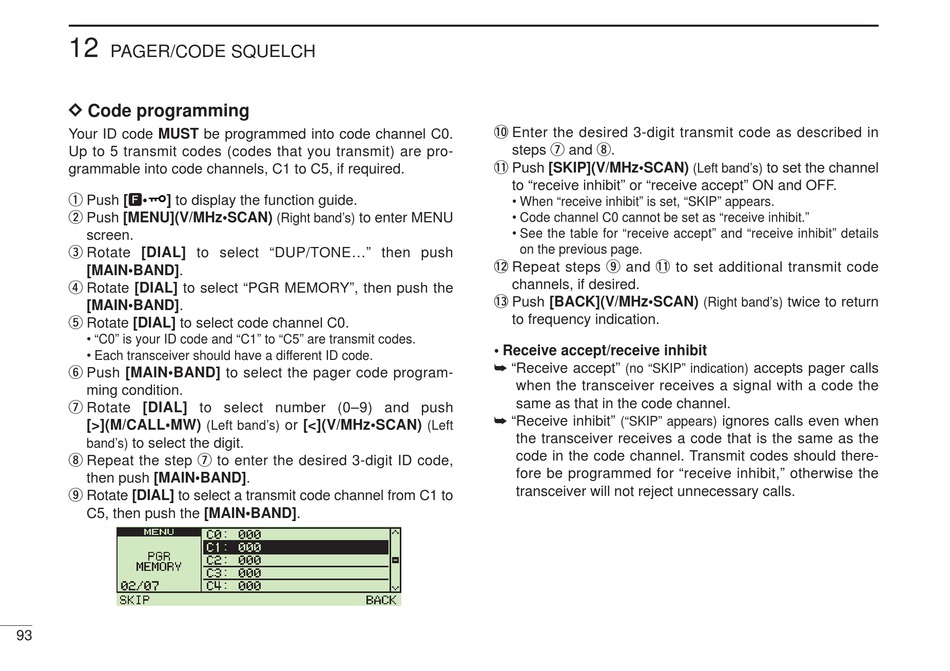

Icom IC-2820H Instruction Manual page 114

12
PAGER/CODE SQUELCH
D D Code programming
Your ID code MUST be programmed into code channel C0.
Up to 5 transmit codes (codes that you transmit) are pro-
grammable into code channels, C1 to C5, if required.
q Push [F•
] to display the function guide.
w Push [MENU](V/MHz•SCAN)
screen.
e Rotate [DIAL] to select "DUP/TONE..." then push
[MAIN•BAND].
r Rotate [DIAL] to select "PGR MEMORY", then push the
[MAIN•BAND].
t Rotate [DIAL] to select code channel C0.
• "C0" is your ID code and "C1" to "C5" are transmit codes.
• Each transceiver should have a different ID code.
y Push [MAIN•BAND] to select the pager code program-
ming condition.
u Rotate [DIAL] to select number (0–9) and push
[>](M/CALL•MW)
to select the digit.
band's)
i Repeat the step u to enter the desired 3-digit ID code,
then push [MAIN•BAND].
o Rotate [DIAL] to select a transmit code channel from C1 to
C5, then push the [MAIN•BAND].
93
to enter MENU
(Right band's)
or [<](V/MHz•SCAN)
(Left band's)
!0 Enter the desired 3-digit transmit code as described in
steps u and i.
!1 Push [SKIP](V/MHz•SCAN)
to "receive inhibit" or "receive accept" ON and OFF.
• When "receive inhibit" is set, "SKIP" appears.
• Code channel C0 cannot be set as "receive inhibit."
• See the table for "receive accept" and "receive inhibit" details
on the previous page.
!2 Repeat steps o and !1 to set additional transmit code
channels, if desired.
!3 Push [BACK](V/MHz•SCAN)
to frequency indication.
• Receive accept/receive inhibit
➥ "Receive accept"
when the transceiver receives a signal with a code the
same as that in the code channel.
➥ "Receive inhibit"
(Left
the transceiver receives a code that is the same as the
code in the code channel. Transmit codes should there-
fore be programmed for "receive inhibit," otherwise the
transceiver will not reject unnecessary calls.
to set the channel
(Left band's)
twice to return
(Right band's)
accepts pager calls
(no "SKIP" indication)
ignores calls even when
("SKIP" appears)
