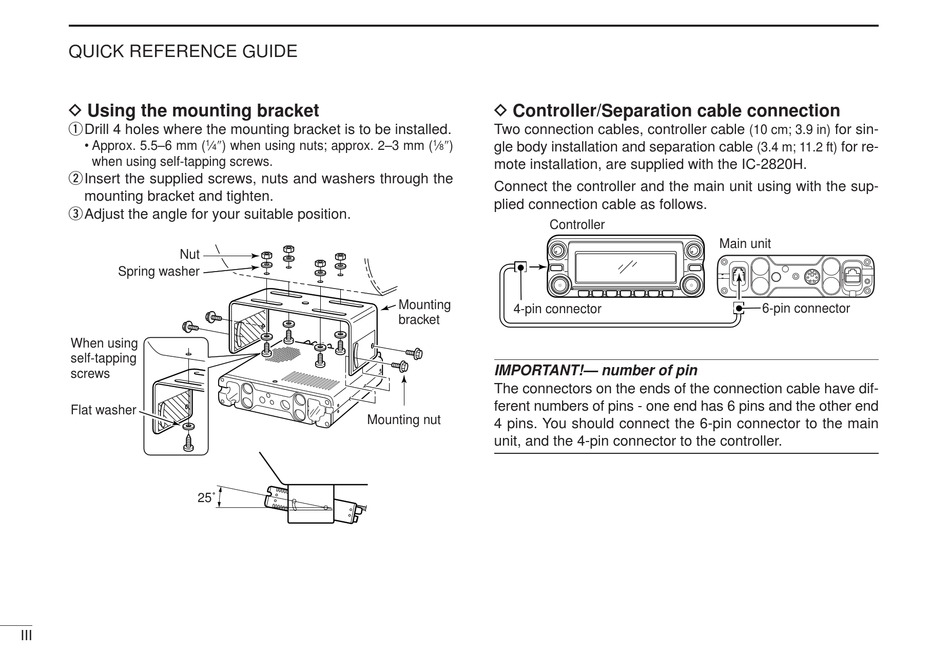

QUICK REFERENCE GUIDE
D Using the mounting bracket
qDrill 4 holes where the mounting bracket is to be installed.
• Approx. 5.5–6 mm (
when using self-tapping screws.
wInsert the supplied screws, nuts and washers through the
mounting bracket and tighten.
eAdjust the angle for your suitable position.
Nut
Spring washer
When using
self-tapping
screws
Flat washer
25˚
III
1 ⁄ ") when using nuts; approx. 2–3 mm (
4
Mounting nut
D Controller/Separation cable connection
Two connection cables, controller cable
1 ⁄
") gle body installation and separation cable
8
mote installation, are supplied with the IC-2820H.
Connect the controller and the main unit using with the sup-
plied connection cable as follows.
Controller
Mounting
4-pin connector
bracket
IMPORTANT!— number of pin
The connectors on the ends of the connection cable have dif-
ferent numbers of pins - one end has 6 pins and the other end
4 pins. You should connect the 6-pin connector to the main
unit, and the 4-pin connector to the controller.
for sin-
(10 cm; 3.9 in)
for re-
(3.4 m; 11.2 ft)
Main unit
6-pin connector
