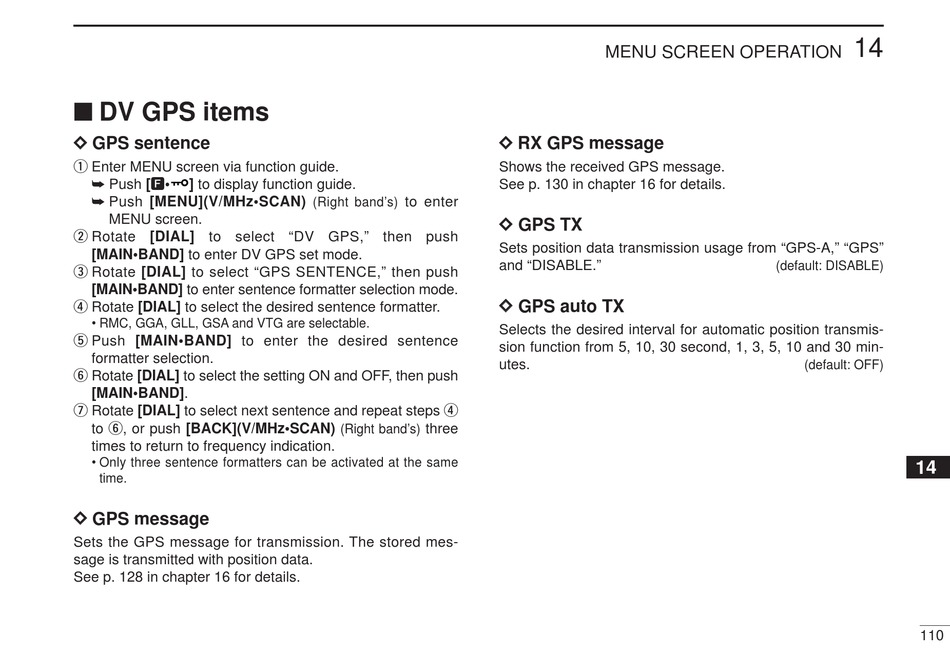

■ DV GPS items

D D GPS sentence
q Enter MENU screen via function guide.
➥ Push [F•
] to display function guide.
➥ Push [MENU](V/MHz•SCAN)
MENU screen.
w Rotate [DIAL] to select "DV GPS," then push
[MAIN•BAND] to enter DV GPS set mode.
e Rotate [DIAL] to select "GPS SENTENCE," then push
[MAIN•BAND] to enter sentence formatter selection mode.
r Rotate [DIAL] to select the desired sentence formatter.
• RMC, GGA, GLL, GSA and VTG are selectable.
t Push [MAIN•BAND] to enter the desired sentence
formatter selection.
y Rotate [DIAL] to select the setting ON and OFF, then push
[MAIN•BAND].
u Rotate [DIAL] to select next sentence and repeat steps r
to y, or push [BACK](V/MHz•SCAN)
times to return to frequency indication.
• Only three sentence formatters can be activated at the same
time.
D D GPS message
Sets the GPS message for transmission. The stored mes-
sage is transmitted with position data.
See p. 128 in chapter 16 for details.
to enter
(Right band's)
three
(Right band's)
MENU SCREEN OPERATION
D D RX GPS message
Shows the received GPS message.
See p. 130 in chapter 16 for details.
D D GPS TX
Sets position data transmission usage from "GPS-A," "GPS"
and "DISABLE."
D D GPS auto TX
Selects the desired interval for automatic position transmis-
sion function from 5, 10, 30 second, 1, 3, 5, 10 and 30 min-
utes.
14
1
2
3
4
5
6
(default: DISABLE)
7
8
9
10
(default: OFF)
11
14
13
14
15
16
17
18
19
110
