19) Attach the rear cover with the repeating harness B routed through the cut portion of the rear cover.

2.5.4 Registering the Card IDs

iR2016J / iR2016 / iR2020 /
After installing the card reader-E1, register the card numbers to be used in the service mode of the iR body. If they are not registered, cards will not be recognized
when inserted.
1) Plug the power cord [1] into the outlet, and then turn on the main power switch [2].
2) Press the following keys to display the service mode screen:
Additional Functions Key > 2 Key > 8 Key > Additional Functions Key
3) Select "# ACC" using the + and - key, and then press the OK key.
4) Select "CARD" using the + and - key, and then press the OK key.
5) Specify the first ID number of the card ID numbers to be registered, and then press the OK key.
Sequential Card ID numbers of 100 cards(*) are automatically registered in the department ID, starting with the specified card ID number.
* When an optional ROM is added, card ID numbers of 1000 cards are registered.
6) Press the Additional Functions key to enter the user mode.
7) Select "SYSTEM SETTINGS" using the + and - key, and then press the OK key.
8) Select "MANAGE DEPT. ID" using the + and - key, and then press the OK key.
9) Select "ON" using the + and - key, and then press the OK key.
10) Turn main power switch off and on again. Check that "INSERT CARD" appears.
2-24
[1]

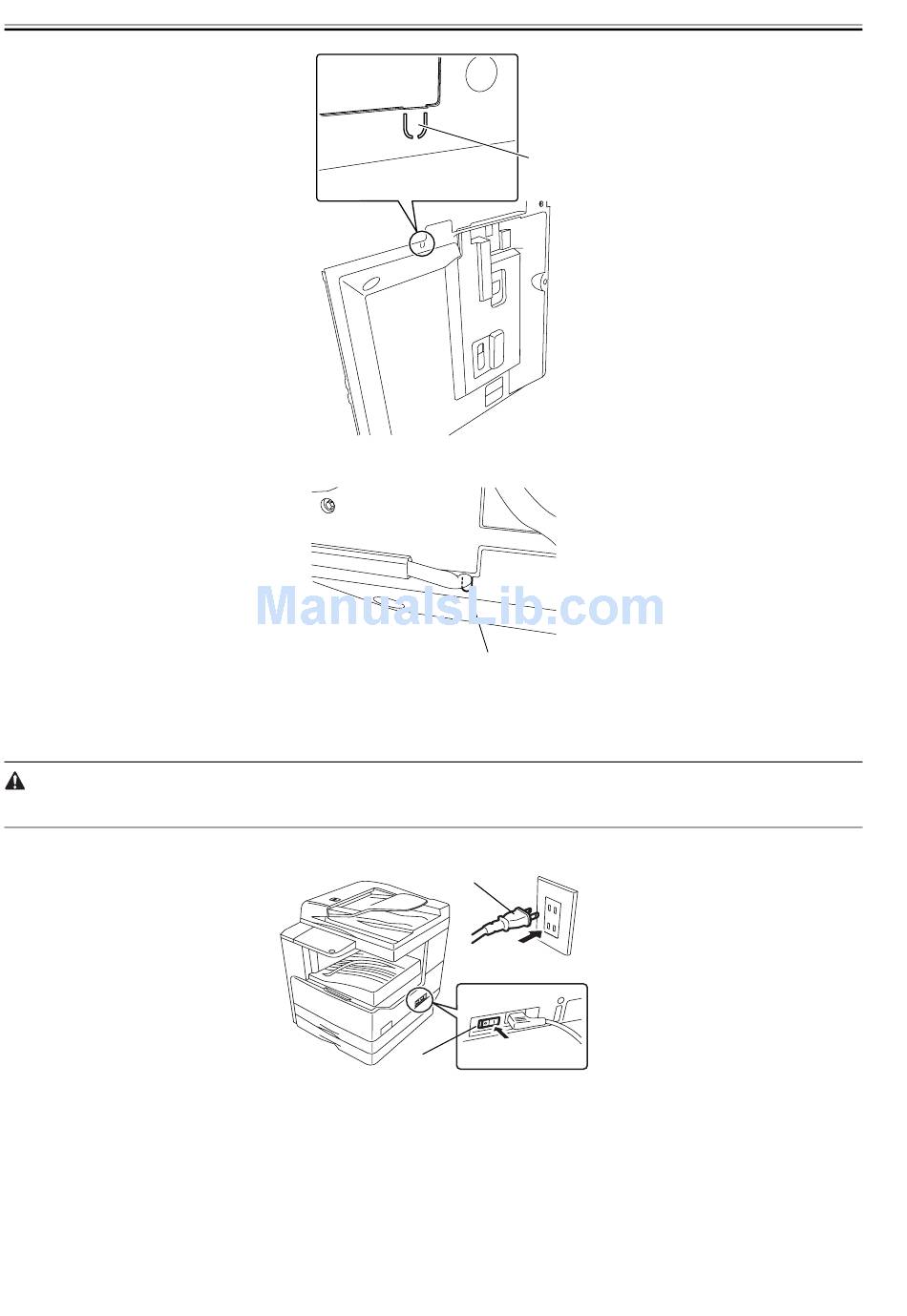

F-2-70
