Field Name
Profile: The serial profile assigned to this port. The assigned profile
defines all of the communication parameters associated with
this serial port. The default value is the default factory profile
"Default". Profiles are set in the 4.5.1.1 Ports: Profiles screen.
Admin Status: The desired status of the port. This parameter is used to enable
or disable the port.
This parameter can take the following values:
Default value = Disabled
Note: The actual status of the port is reported in the Oper
Status column of the 4.4.1.2 Ports: Status screen.

4.5.1.3 Ports: Statistics

This screen displays counters for each Serial port in the system.
The statistics for each port are grouped into separate rows. The "Last cleared" text under
each table tells you when the counting of the displayed statistics began. All totals
displayed are since the "Last cleared" date and time.
The table below describes the parameters displayed in the Ports: Statistics tables.
Field Name
Port ID: Uniquely identifies a Serial interface.
Tx Char: The number of characters transmitted on this port.
Rx Char: The number of characters received on this port.
Table 4–45: Ports: Settings
Field Value
• Enabled – Port is UP
• Disabled – Port is DOWN

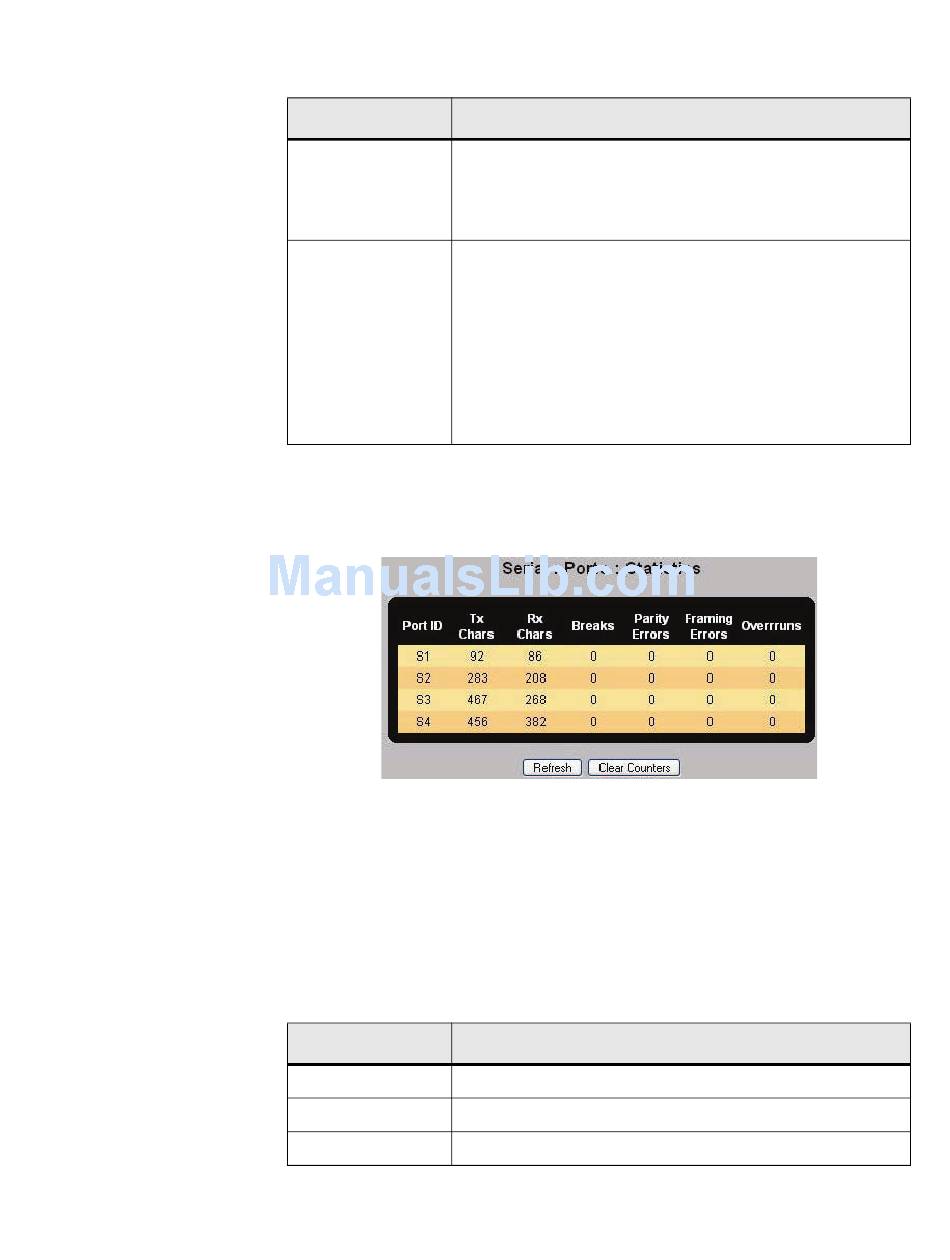

FIGURE 4–45: Serial: Ports: Statistics
Table 4–46: Ports: Statistics
Field Value
