4.4.1.2 Ports: Status

This screen enables you to quickly determine the capabilities and current status of each
Ethernet port in the system.
The table below describes the information displayed in the fields of the Ports: Status
screen.
Field Name
Port ID: Uniquely identifies a logical Ethernet port that corresponds to a
physical, labeled interface on the exterior of the product
chassis.
Interface Type: A READ-ONLY field that indicates what interface is physically
installed for the port specified in the Port ID column. This
parameter is based on the product model and can be one of the
following:
Speed: A READ-ONLY field that indicates the actual speed of the
communication channel. If you selected a particular Media Type
in the 4.4.1.1 Ports: Settings screen the displayed speed will
match that selection. If you selected "Auto" this field will display
the actual negotiated speed. This parameter may take one of
the following values:
MULTINET4 MULTI-PORT SERIAL SERVER & MANAGED SWITCH – INSTRUCTION MANUAL
CHAPTER 4: SYSTEM ADMINISTRATION

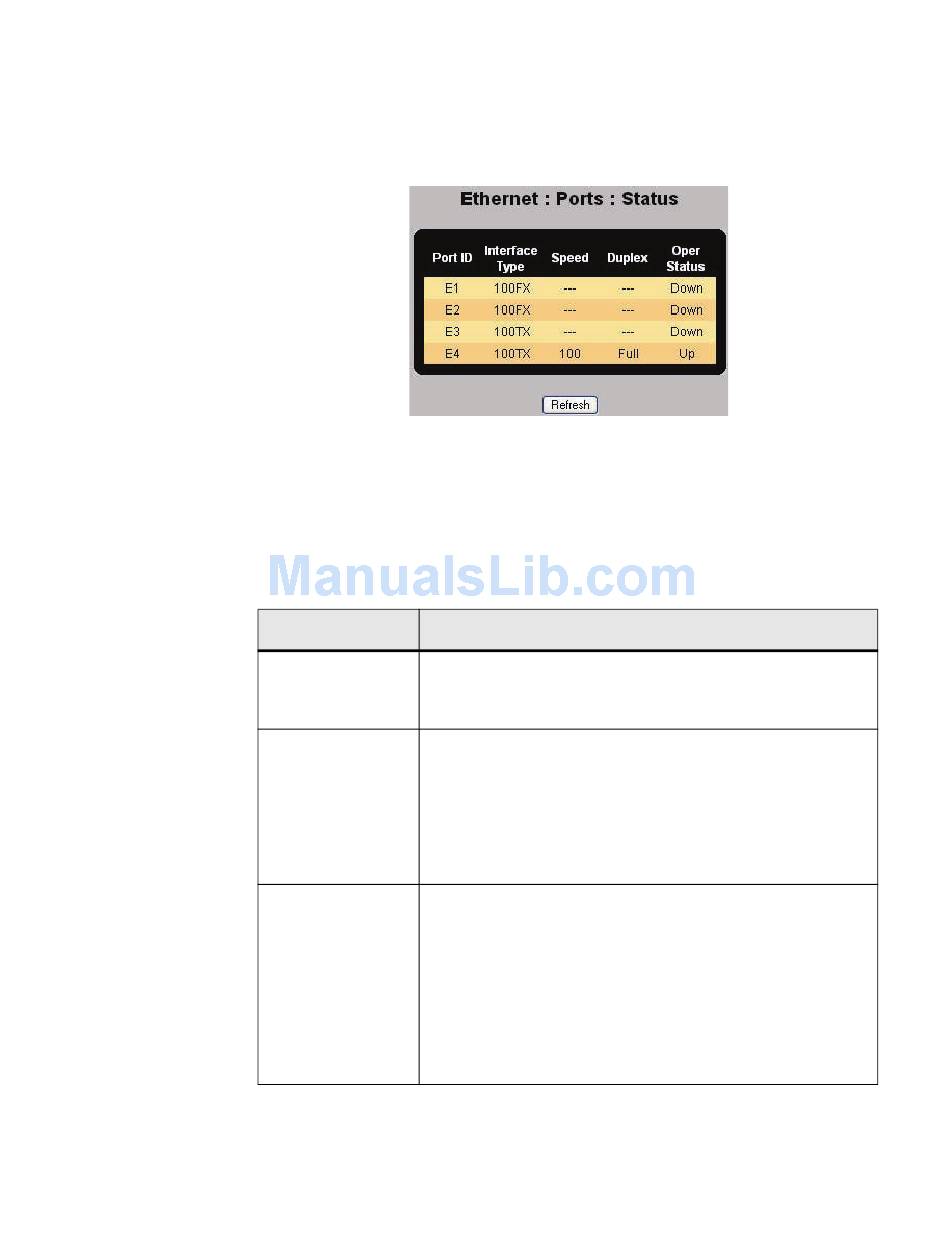

FIGURE 4–29: Ethernet: Ports: Status
Table 4–29: Ethernet: Ports: Status
Field Value
• 10/100BaseT
• 100BaseFX
• 10
• 100
