CHAPTER 1: OVERVIEW
1.3

Pinouts

1.3.1

RJ45

1.3.2

Fiber Optic

MULTINET4 MULTI-PORT SERIAL SERVER & MANAGED SWITCH – INSTRUCTION MANUAL
The following subsections describe the pinouts of the connectors used with the Multinet4.

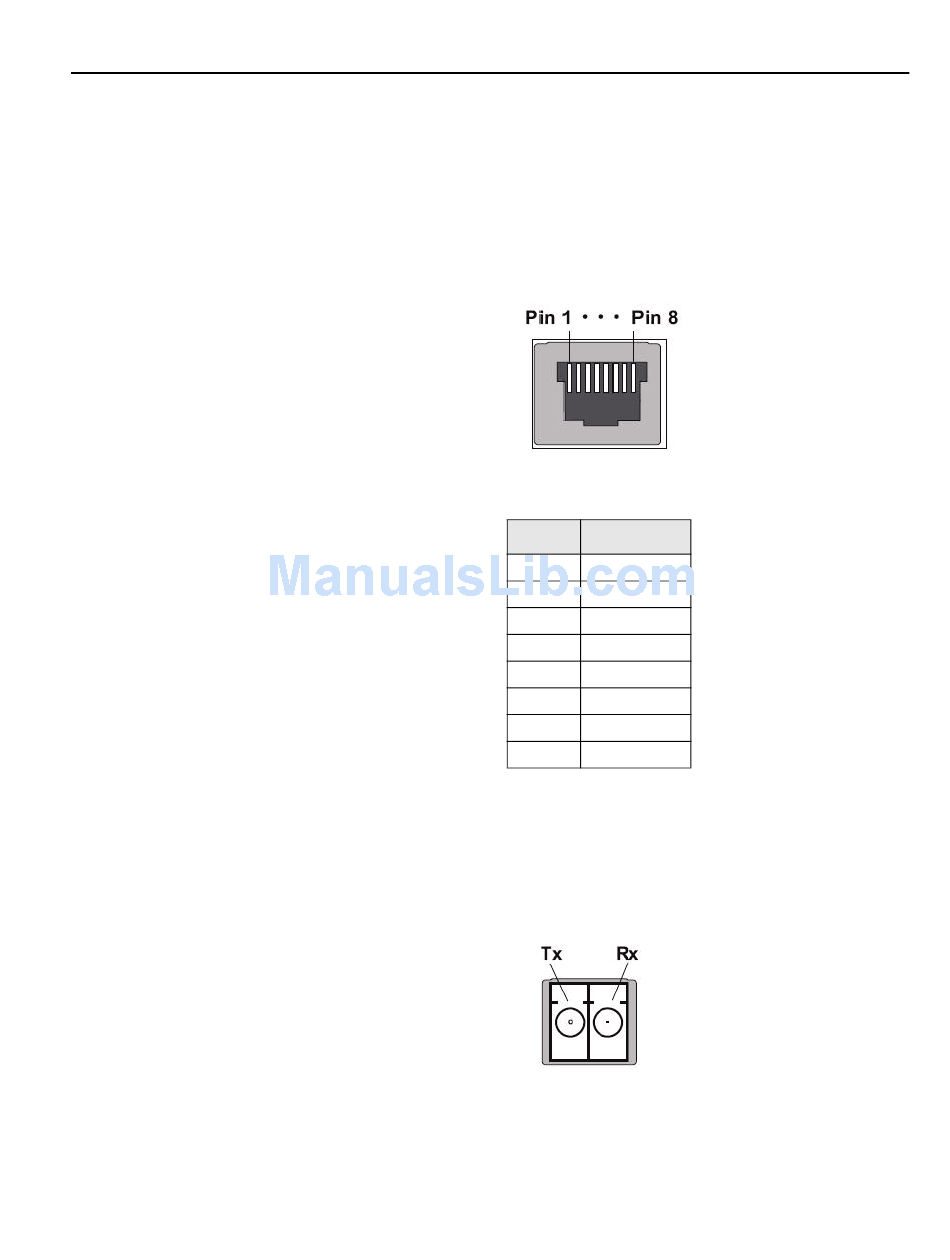

Defines the pinout of the RJ45 connector used with the Multinet4. RJ45 connectors are
used on ports E3 and E4 for 10/100 BaseT connections to copper Ethernet-capable
devices.
The figure below defines the pinout of the Fiber connector used with the Multinet4. Fiber
connectors are used on ports E1 and E2 for 100FX multi/single mode for connections to
fiber optic Ethernet-capable devices or networks.
Table 1–6: RJ45 Pinout
Pin Signal
1 Tx +
2 Tx -
3 Rx +
4 not used
5 not used
6 Rx -
7 not used
8 not used
OVERVIEW
1–9
