Front

Printer parts

Printer parts
Front ........................................................................................................................................................................................... 664
Back ............................................................................................................................................................................................ 665
Top Cover (Inside) ................................................................................................................................................................. 666
Paper Feed Slots ................................................................................................................................................................... 667
Inside the Roll Feed Unit Cover ....................................................................................................................................... 668
Carriage ..................................................................................................................................................................................... 668
Ink Tank Cover (Inside) ....................................................................................................................................................... 669
Vents ........................................................................................................................................................................................... 670
Control Panel ........................................................................................................................................................................... 630

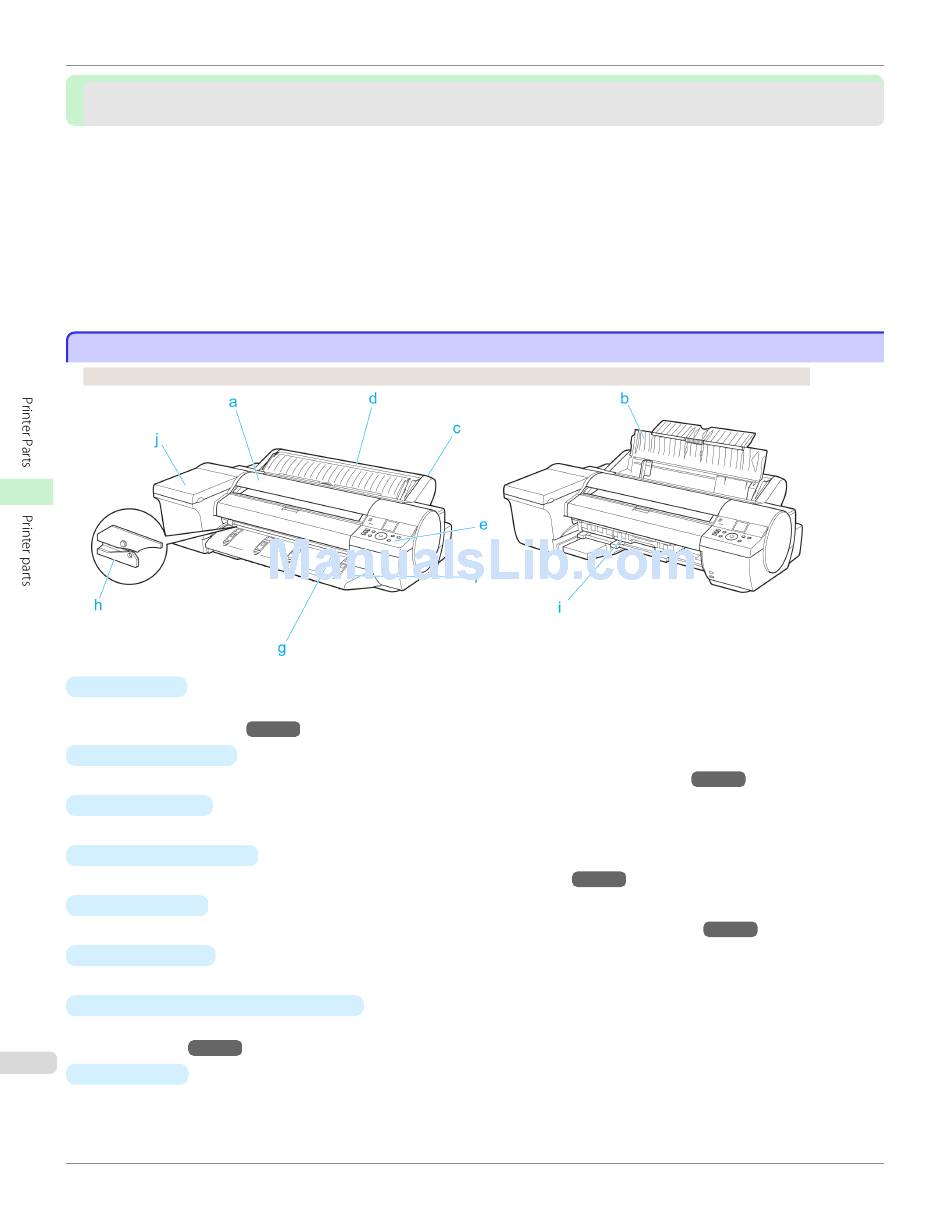

Front

Front
Standard
a
Top Cover
Open this cover to install the Printhead and remove any jammed paper from inside the printer, as needed. (See
"Top Cover (Inside).")
b
Paper Tray Cover
Open this cover to load a sheet in the Top Paper Feed Slot. (See "Paper Feed Slots.")
c
Roll Feed Unit
Load rolls in this unit. You can also load sheets manually.
d
Roll Feed Unit Cover
Open this cover to load rolls. (See "Inside the Roll Feed Unit Cover.")
e
Control Panel
Use this panel to operate the printer and check the printer status. (See "Control Panel.")
f
Ejection Guide
Supports output paper.
g
Output Tray (Front Paper Feed Slot)
All printed documents are ejected from this slot. When loading heavyweight paper, insert it here. (See "Paper
Feed Slots.")
→P.667
664
h
Cutter Unit
A round-bladed cutter for automatic roll cutting.
→P.666
With the Ejection Guide removed
→P.668
iPF6400
→P.667
→P.630
User's Guide
