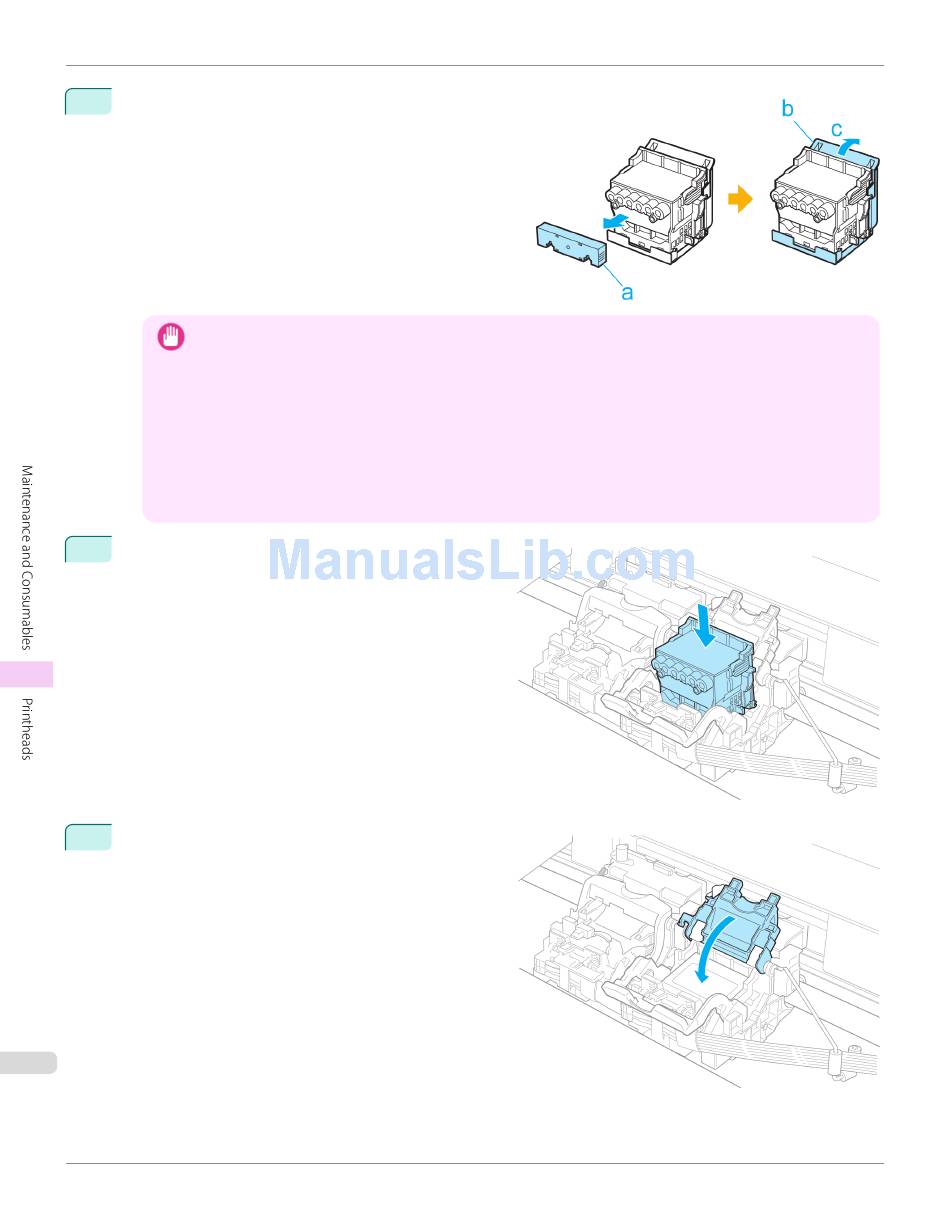

Replacing the Printhead
7
While firmly holding the Printhead you have removed, use
your other hand to remove the orange Protective Part (a).
Squeeze the grips (c) of Protective Part (b) and pull it
down to remove it.
Important
8
With the nozzles facing down and the metal contacts
toward the back, insert the Printhead into the Carriage.
Carefully push the printhead firmly into the Carriage,
ensuring that the nozzles and metal contacts do not
touch the carriage.
9
Pull the Printhead Fixer Cover down toward the front to
lock the Printhead in place.
852
•
The inside surface of the Protective Part (a) and Protective Part (b) is coated with ink to protect the nozzles. Be
careful not to touch these surfaces when removing the caps.
•
The Printhead contains ink to protect the nozzles. We recommend removing Protective Part (b) as you hold it over
the Printhead package or safely out of the way to avoid spilling ink and staining your clothes or the surrounding
area. If ink accidentally spills, wipe off the ink with a dry cloth.
•
If you need to put a Printhead somewhere temporarily before installation, do not keep the nozzles and metal con-
tacts facing down. If the nozzles or metal contacts are damaged, it may affect the printing quality.
•
Do not reattach the Protective Part or protective material. Dispose of these materials in accordance with local regu-
lations.
