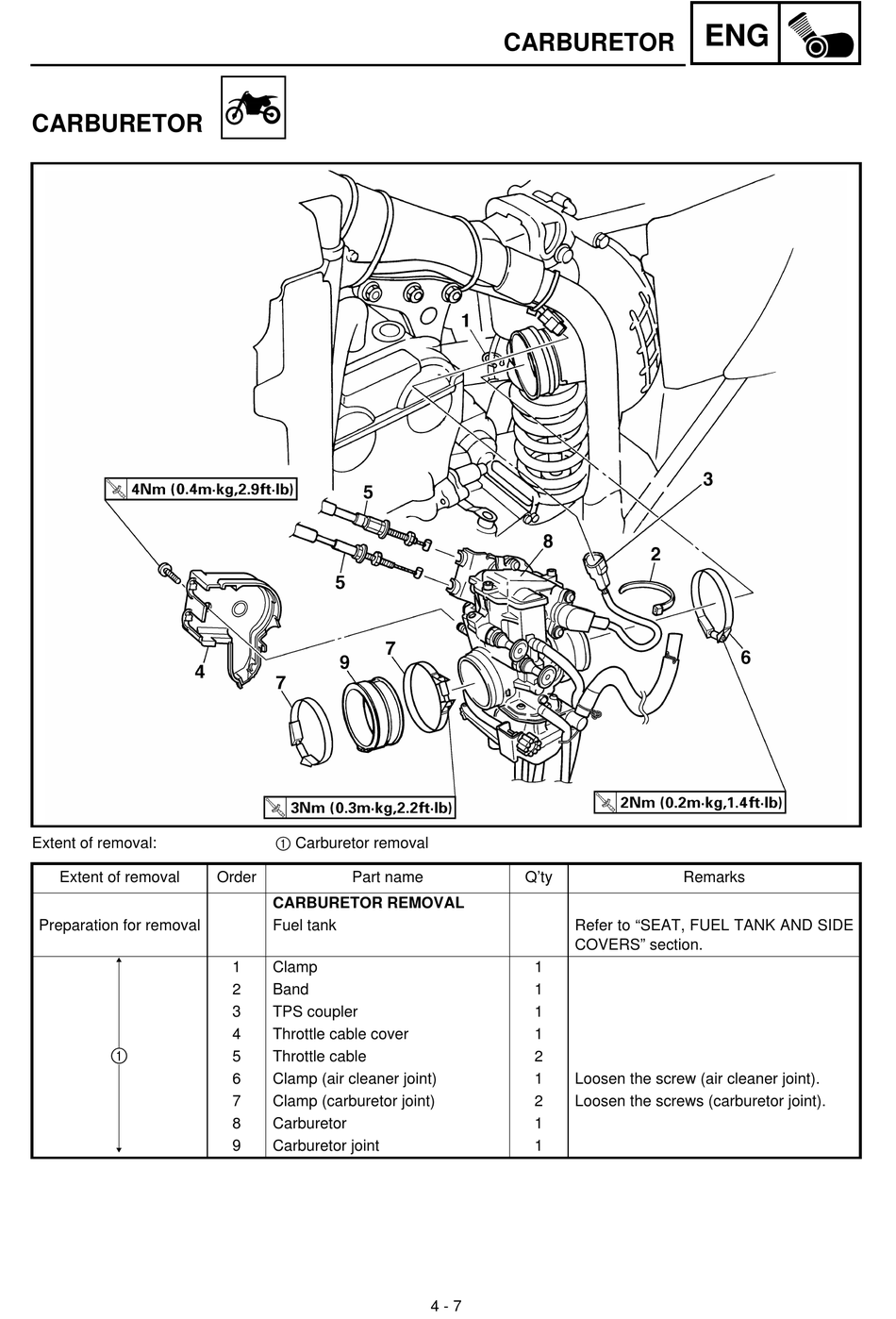

CARBURETOR

Extent of removal:
Extent of removal
Preparation for removal
1
1 Carburetor removal
Order Part name
CARBURETOR REMOVAL
Fuel tank
1 Clamp
2 Band
3 TPS coupler
4 Throttle cable cover
5 Throttle cable
6 Clamp (air cleaner joint)
7 Clamp (carburetor joint)
8 Carburetor
9 Carburetor joint
CARBURETOR
Q'ty
Refer to "SEAT, FUEL TANK AND SIDE
COVERS" section.
1
1
1
1
2
1 Loosen the screw (air cleaner joint).
2 Loosen the screws (carburetor joint).
1
1
4 - 7
ENG
Remarks
