CDM-Qx/QxL Multi-Channel Satellite Modem with DoubleTalk™ Carrier-in-Carrier®
Ethernet Management
6.5.4.2.2

Admin | Remote Page

The 'Admin | Remote' page (Figure 6-5) sets and returns administration information for the
CDM-Qx/QxL Simple Network Management Protocol (SNMP) feature. For complete details
pertaining to the configuration parameters available on this page, refer to Chapter 5. FRONT
PANEL OPERATION and Sect. 6.3 SNMP INTERFACE.
Note the following:
•
Select Simple Network Management as Enabled or Disabled.
•
Use the drop-down menu to select the Trap Version as 1 or 2.
•
The Administrator can assign up to two SNMP Trap IP addresses.
•
The Administrator can assign SNMP Read, Write, and Trap Community Strings. Note the
following default strings:
o Default Read Community String: public
o Default Write Community String: private
o Default Trap Community String: comtech
Note that the SNMP Community Strings can be any combination of characters and a length
of 0 - 20 characters.
Once the desired configuration settings have been made on this page, the user should then click
[Submit SNMP] to save these changes.

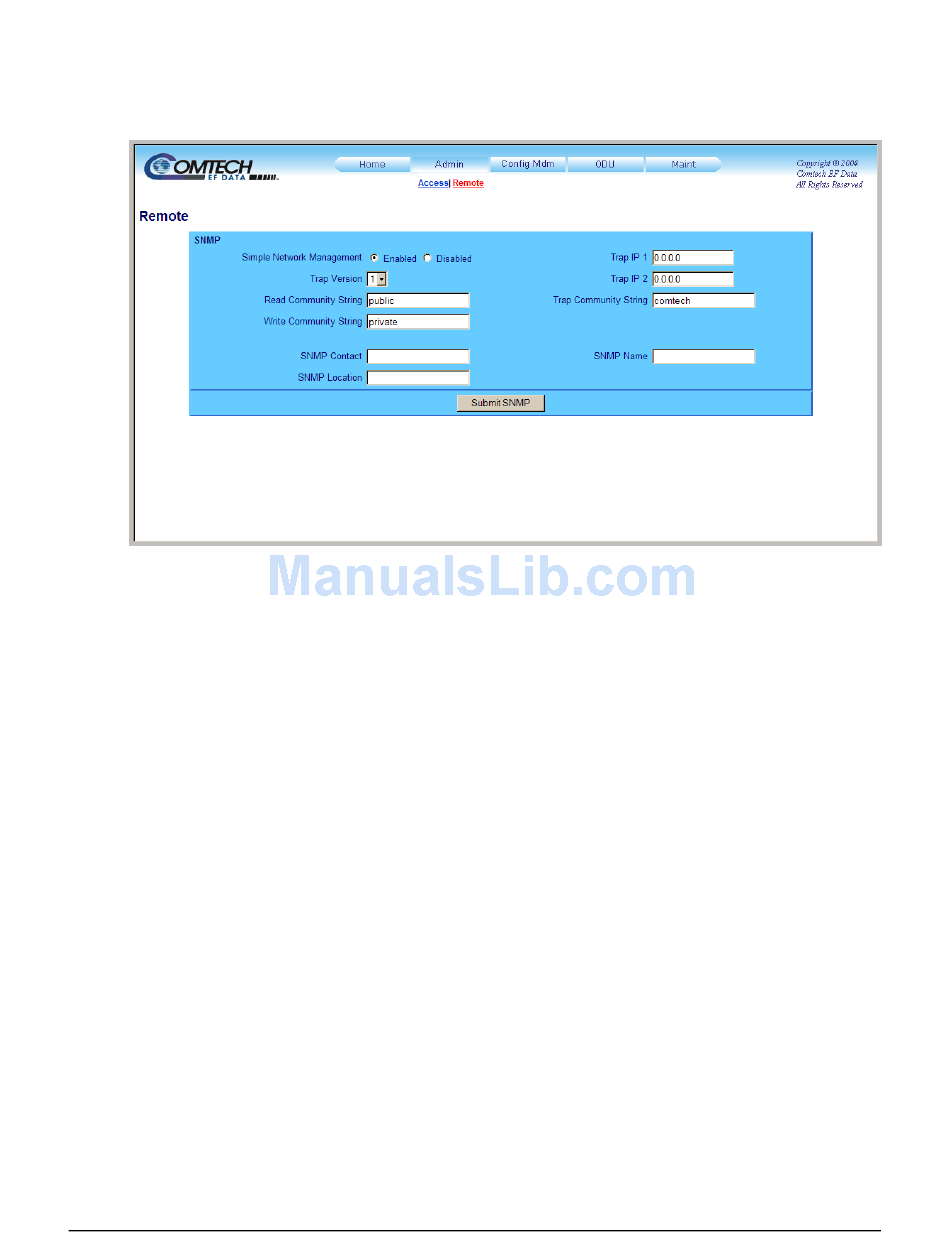

Figure 6-5. Admin | Remote page
