CDM-Qx/QxL Multi-Channel Satellite Modem with DoubleTalk™ Carrier-in-Carrier®
Ethernet Management
6.5.4.3.1.4 Config Mdm | Quick View | Utility Pages
Depending on the configuration icon selected, the nested Utility page provides the user with
access to an assortment of modem operating settings. For detailed information on these features,
refer to Sect. 5.9 (MAIN MENU:) UTILITY in Chapter 5. FRONT PANEL OPERATION.

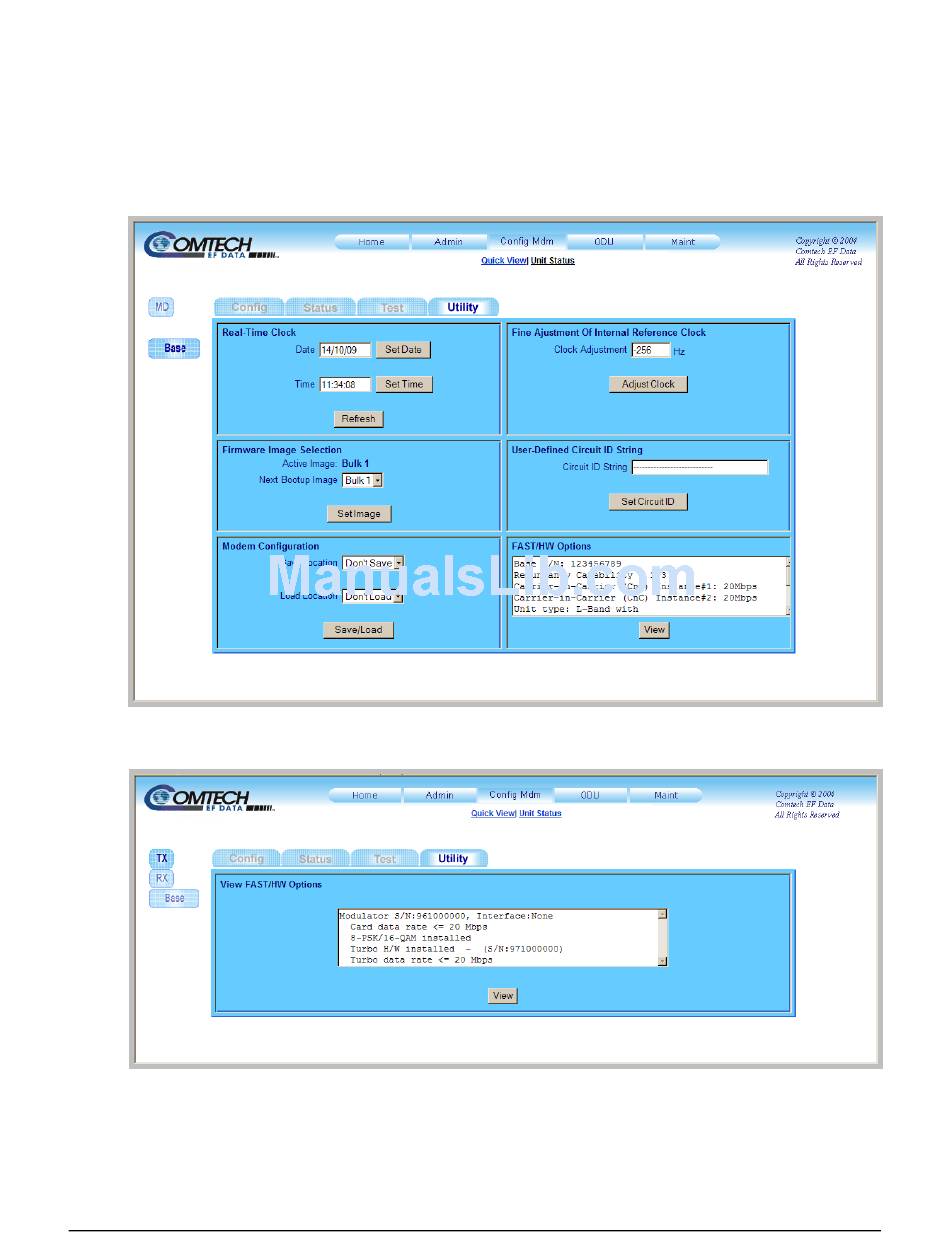

Figure 6-15. 'Config Mdm | Quick View | Utility' Nested Pages – Base, Tx
Utility Page – 'Base' Selected
Utility Page – 'Tx' Selected
6–28
Revision 7
MN/CDMQX.IOM
