Ethernet Management
response (for example, FRW? response) will be displayed as one line, with the latter lines
overwriting the previous lines.
In order to view the full response messages, CEFD recommends using HyperTerminal configured
as Telnet Client. To do so, configure the HyperTerminal as follows:
1. Under
Properties tab: Connect using
TCP/IP instead of COM1 or
COM2.
2. Under the Settings tab, ASCII
setup (far right): For ASCII
Sending, check "Send line
ends with line feeds".
For ASCII Receiving, check
"Append line feeds to in-
coming line ends".

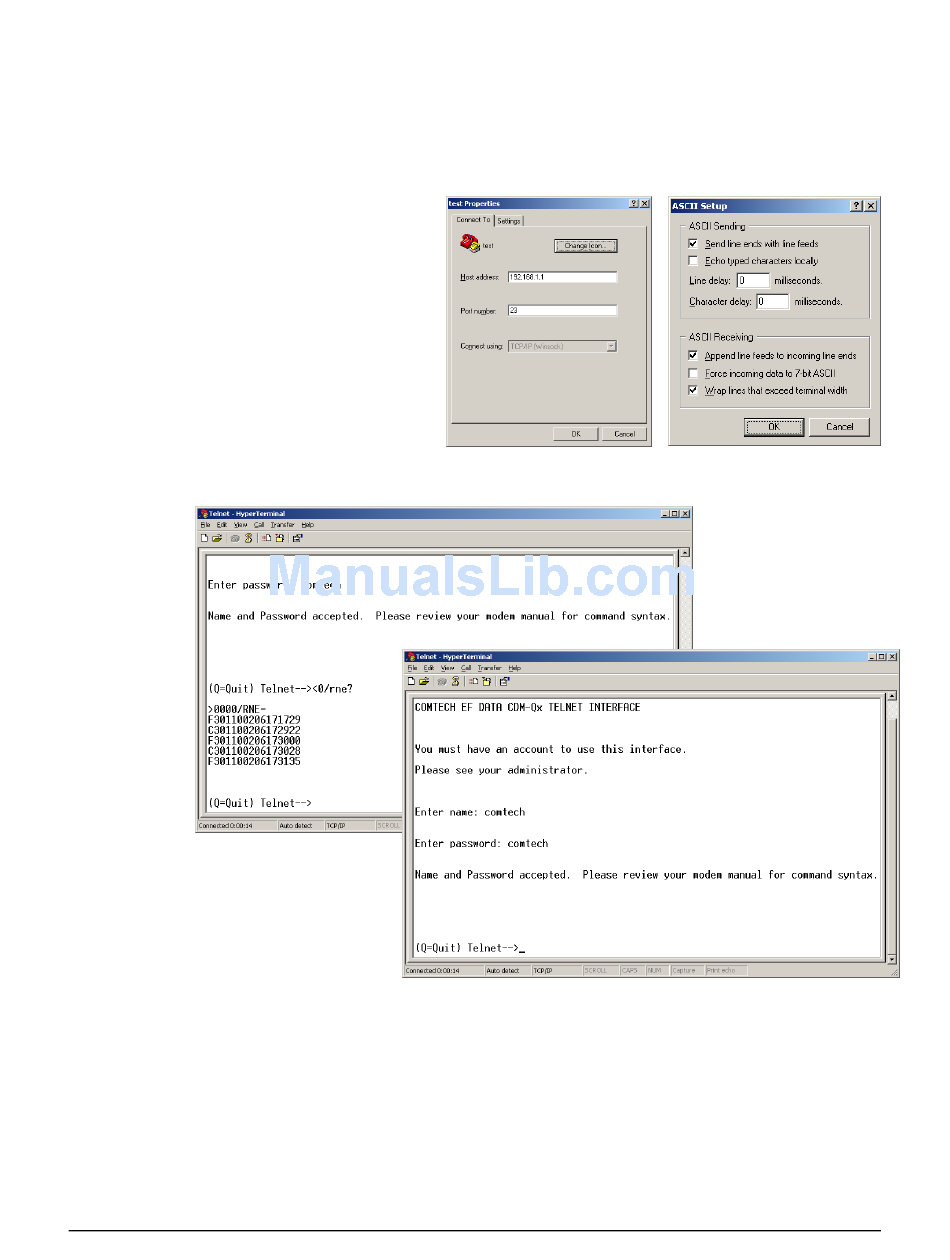

The following screen captures show examples of HyperTerminal configured as Telnet Client:
the HyperTerminal
