CDM-Qx/QxL Multi-Channel Satellite Modem with DoubleTalk™ Carrier-in-Carrier®
Installation
2.2.2

Method B: Optional Bearingless Side-Railings

Figure 2-2 depicts installation of the optional side-railings FP/SL0006, using standard shop
tooling and customer-furnished standard shop hardware:
Quantity

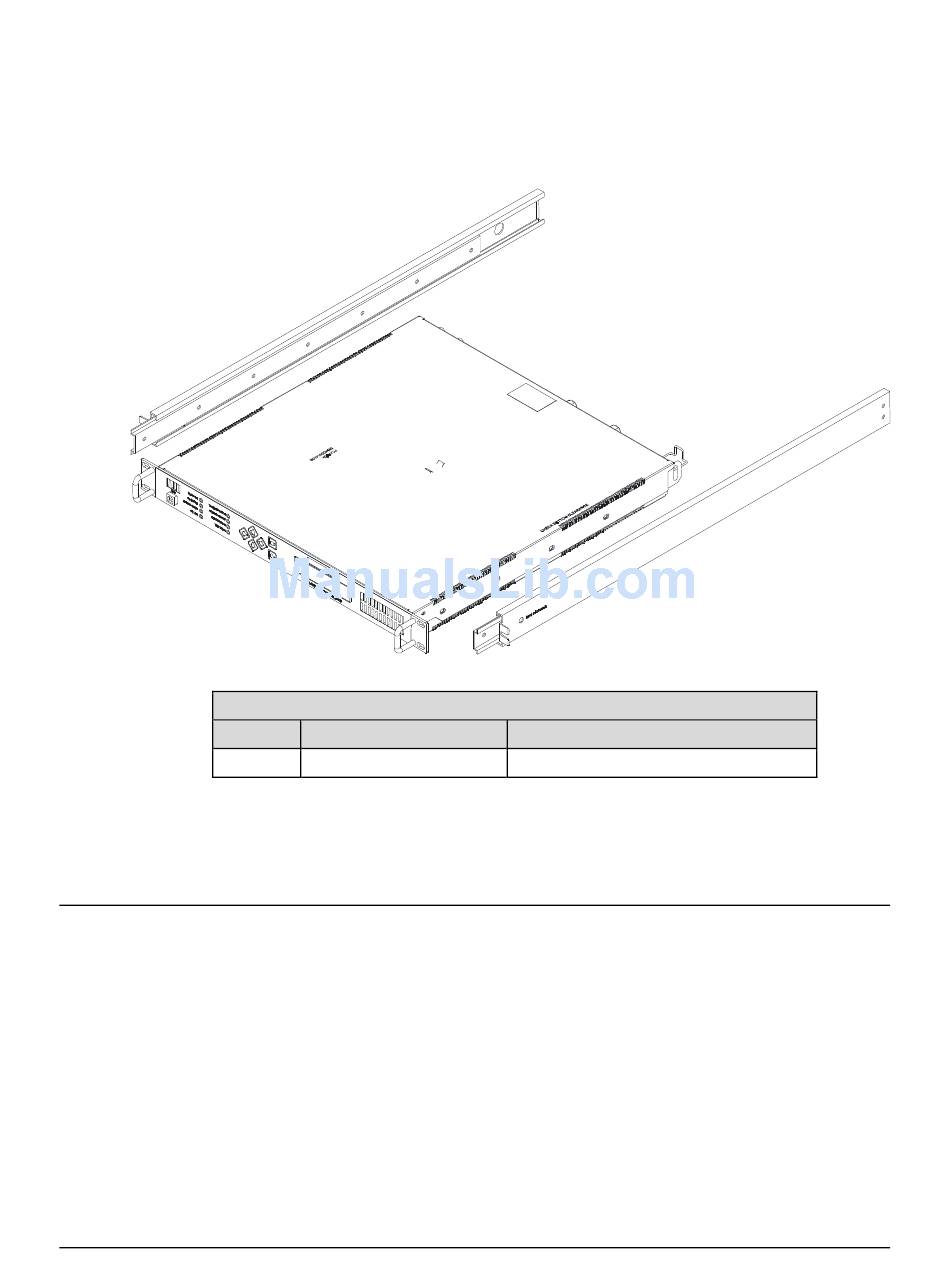

Figure 2-2. Installation of Optional Side-Railings (FP/SL0006)

2.3

Configuration

The unit ships with a default Viterbi 192 kbps, QPSK, Rate 3/4 configuration. There are no
internal jumpers to configure, no interface cards to install, and no other options to install: all
configurations are carried out entirely in software.
The unit should first be configured locally, using the front panel keypad and display. Refer to
Chapter 5. FRONT PANEL OPERATION for details on how to fully configure the unit for the
desired operating parameters.
Note: The auto-sensing AC power supply does not require any adjustments. Simply plug in the
supplied line cord, and turn on the switch on the rear panel.
Optional Side-railings FP/SL0006
CEFD Part Number
2 FP/SL0006
Description
Bearingless Side-Railing
2–4
Revision 7
MN/CDMQX.IOM
