Connector Overview
The CDM-Qx/QxL Multi-Channel Satellite Modem rear panel can be customized to meet user
requirements. As per the three configuration examples shown here in Figure 3-1, optional data
interface modules, used in tandem with the base chassis connectors, provide all necessary
external connections between the modem and other equipment.
Prime Power & Control
Configuration #1
Configuration #2
Configuration #3
Chapter 3. REAR PANEL
Modem 1 with G.703 T1/E1 Balanced (DB-15)
Modem 2 with EIA-422 (DB-25)
Modem 1 with G.703 T1/E1 Unbalanced (BNC)
Modem 2 with EIA-422 (DB-25)
Modem 1 with G.703 T1/E1 Balanced (DB-15) and
Quad E1 Interface Module, 1-4 Ports of E1, with D&I (4) RJ-45

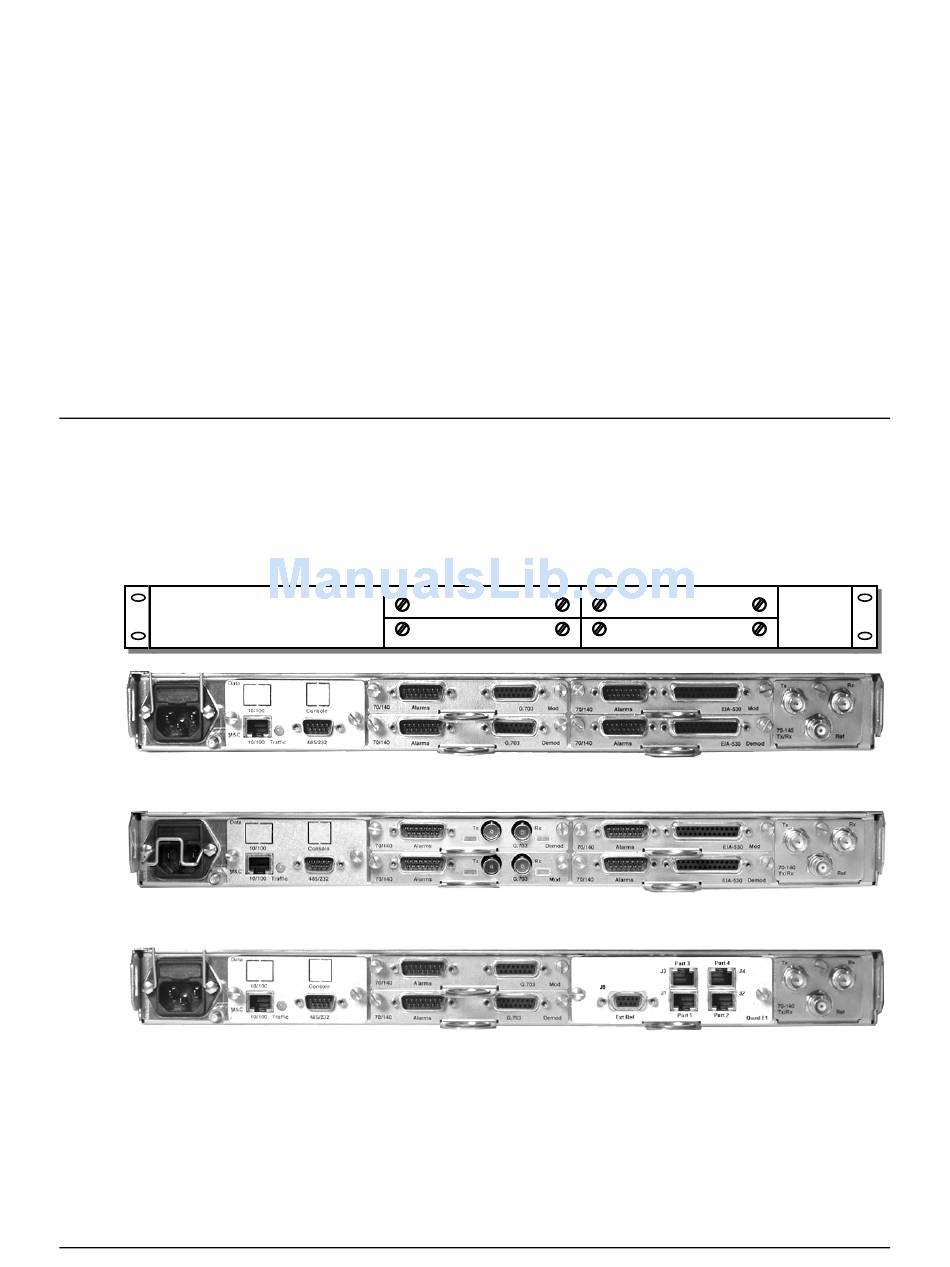

Figure 3-1. CDM-Qx/QxL Rear Panel Configuration Examples
CONNECTORS
Slot 1
Slot 2
3–1
Slot 3
IF I/O
Slot 4
