CDM-Qx/QxL Multi-Channel Satellite Modem with DoubleTalk™ Carrier-in-Carrier®
Revision 7
Appendix A
MN/CDMQX.IOM

A.1.2 EIA-530 to V.35 Data Cable

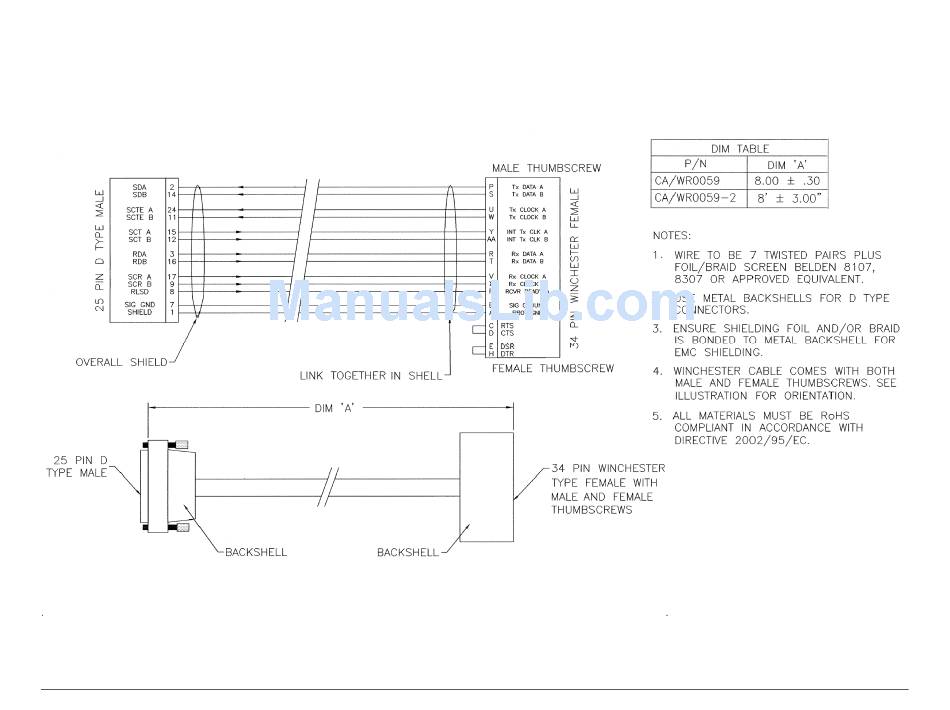

Figure A-2 shows the cable drawing for EIA-530 to V.35 DCE conversion for connections between the CDM-Qx/QxL and the User data.

Figure A-2. : EIA-530 to V.35 DCE Conversion Cable (CA/WR0059)

A-3
