CDM-Qx/QxL Multi-Channel Satellite Modem with DoubleTalk™ Carrier-in-Carrier®
Revision 7
Appendix A
MN/CDMQX.IOM
A.1.3 EIA-530 Conversion Cable

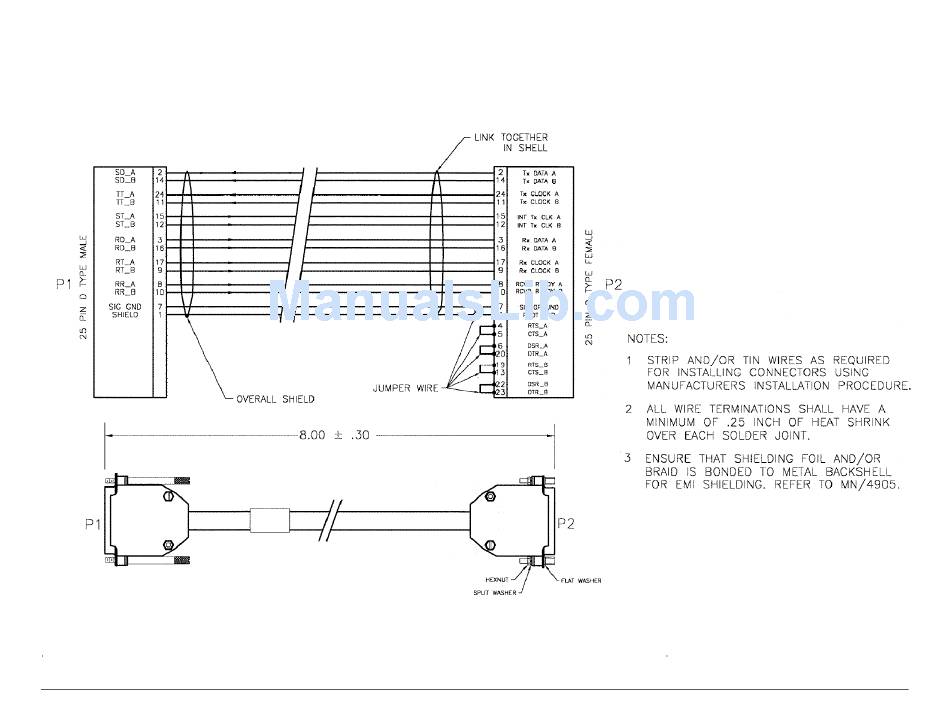

Figure A-3 shows the cable drawing for modem to EIA-530 conversion for connections between the CDM-Qx/QxL and the User data.
Figure A-3. EIA-530 DCE Conversion Cable (CA/WR9718-1)
A-4
