Config Mdm | Quick View | Config; Figure 6-8. 'Config Mdm | Quick View | Config' Nested Pages – Base, Tx - Comtech EF Data CDM-Qx Installation And Operation Manual

CDM-Qx/QxL Multi-Channel Satellite Modem with DoubleTalk™ Carrier-in-Carrier®
Ethernet Management
6.5.4.3.1.1 Config Mdm | Quick View | Config Pages
Depending on the configuration icon selected, the nested Config page provides the user with
access to an assortment of base unit, modulator, and demodulator configuration parameters. For
detailed information on these features, refer to the pertinent subsections of Sect. 5.2 (MAIN
MENU:) CONFIG in Chapter 5. FRONT PANEL OPERATION.

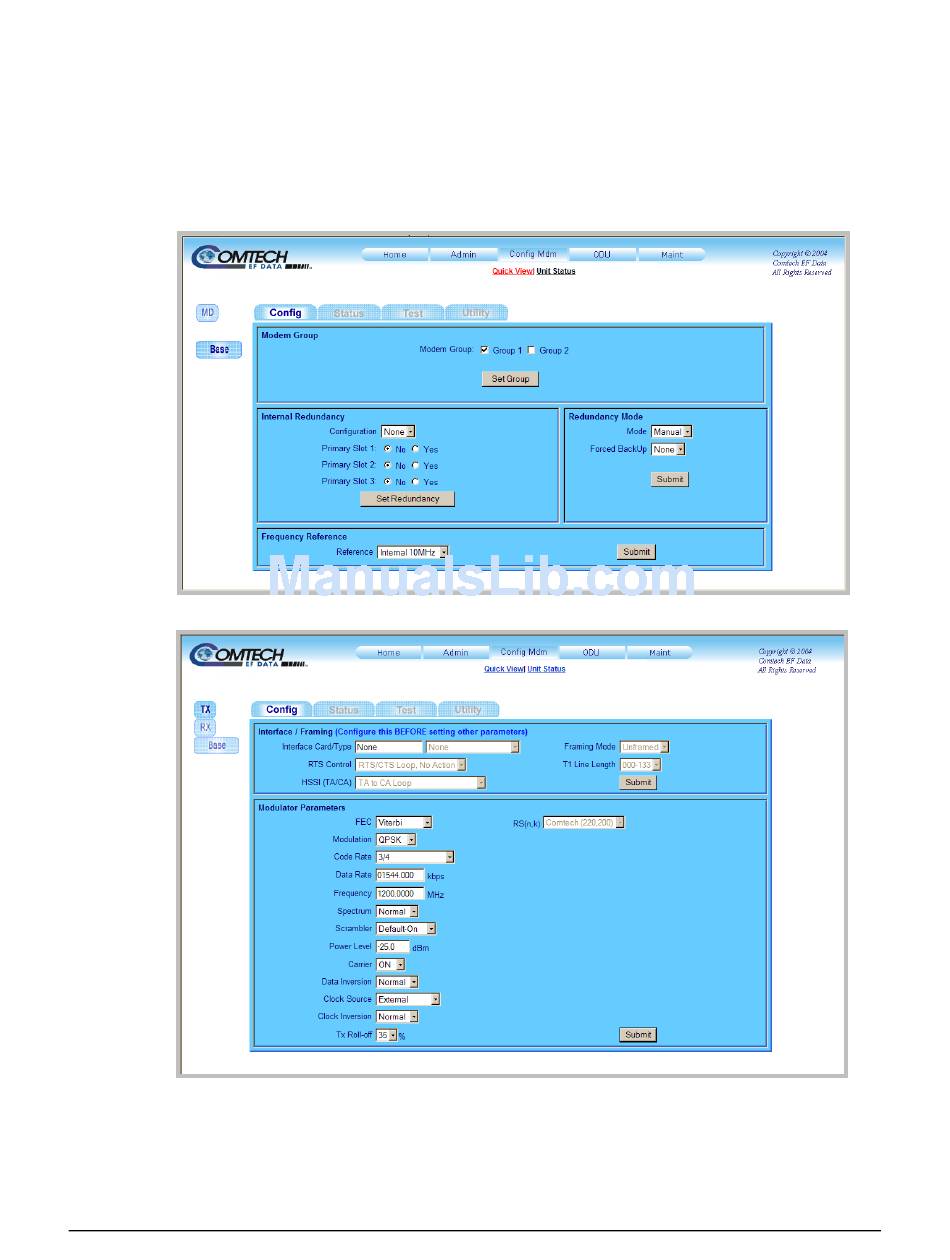

Figure 6-8. 'Config Mdm | Quick View | Config' Nested Pages – Base, Tx
Config Page – 'Base' Selected
Config Page – 'Tx' Selected
