Canon imagePROGRAF iPF815 User Manual page 769

a. Left Media Take-up Unit
Load the Rewind Spool here.
b. Right Media Take-up Unit
Load the Rewind Spool here. Includes the Media Take-up UnitPower button, ▲ and ▼ buttons to advance or rewind
paper, and a power cord.
c. Rewind Spool
Winds documents printed on rolls.
d. 3-inch Adapter
When rewinding rolls with 3-inch paper cores, attach the adapter to the Rewind Spool.
e. Media Take-up Sensor
A sensor for automatically rewinding rolls.

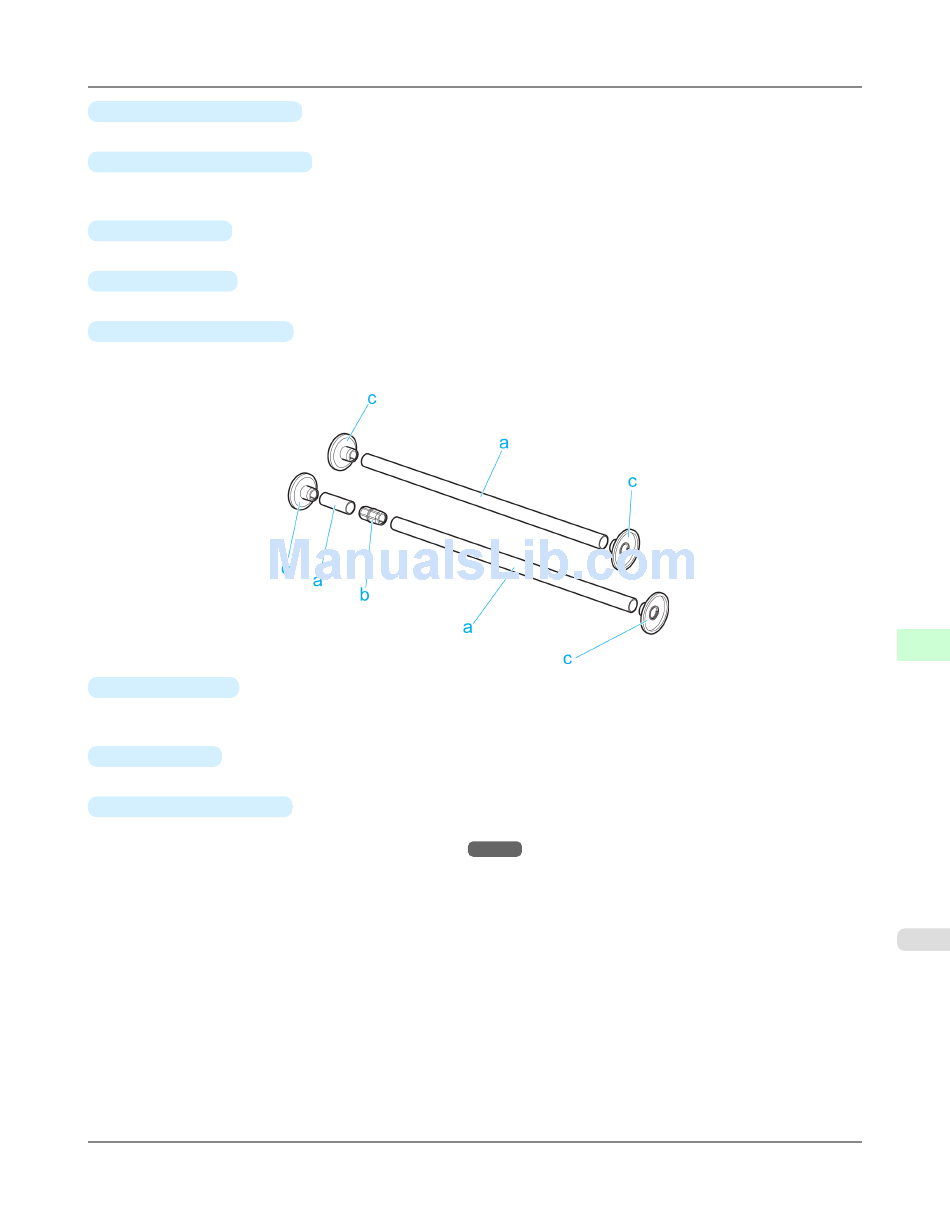

･ Weight
a. Weight Roll (6)
Weights required when rewinding rolls. Use one weight roll or combine two (with a Weight Joint ), depending on the
roll width.
b. Weight Joint
Fastens two weight rolls.
c. Weight Flange (2 sets)
Attached to the ends of Weight Roll to adjust the weight. Use Weight Flange 1 or Weight Flange 2, depending on the
type of paper. (See "Using the Media Take-up Unit.")
iPF815
Printer Parts
→P.754
> Optional accessories >
Media Take-up Unit
