1.

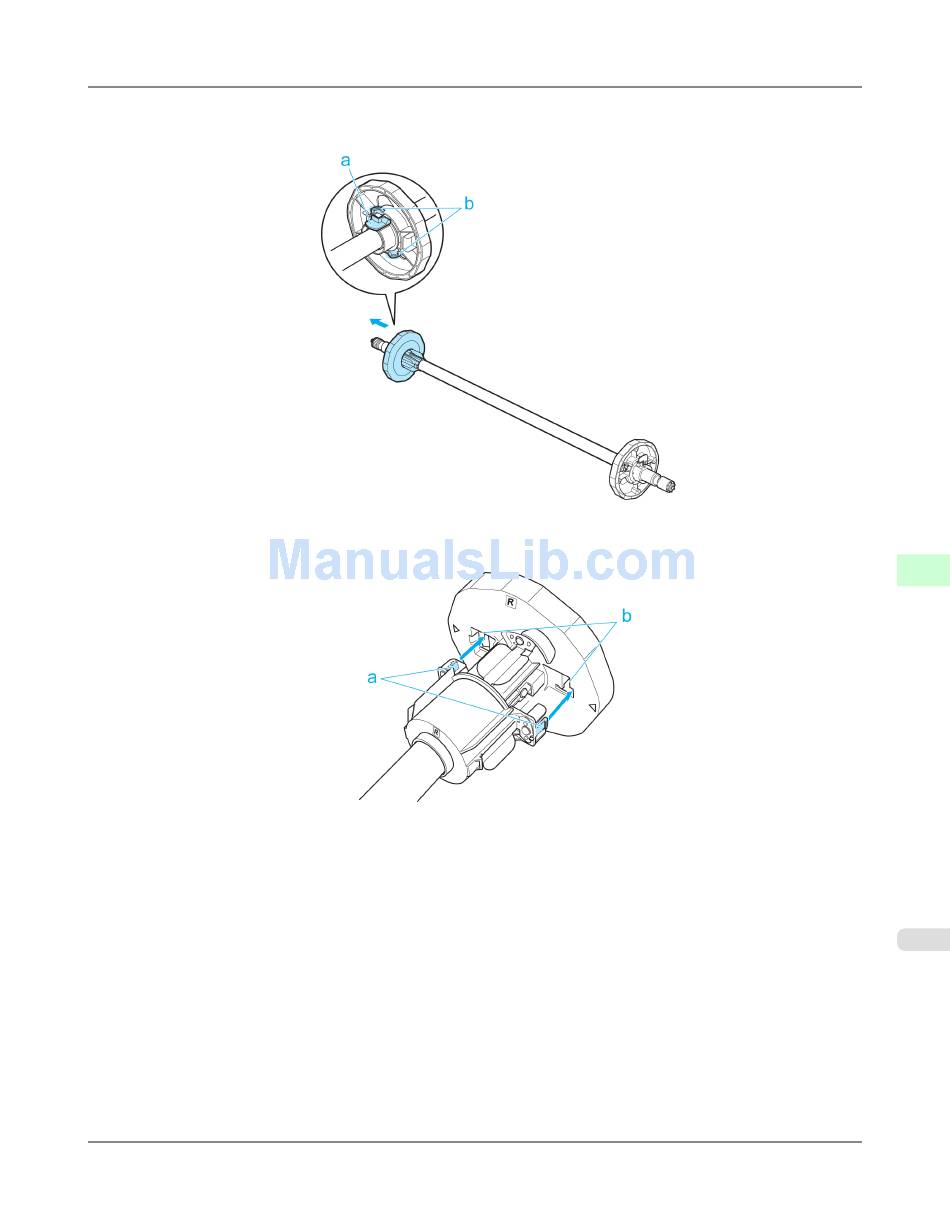

Lift the Holder Stopper lever (a) from the shaft side to unlock it. Holding the Holder Stopper at the position indica-
ted (b), remove it from the Roll Holder.
2.
When using a 3-inch paper core, align the tips (a) of 3-Inch Paper Core Attachment #1 with the holes (b) of the Roll
Holder and insert it firmly.
iPF815
Handling Paper > Handling rolls
Attaching the Roll Holder to Rolls
>
7
625
