Stationary Output Stacker

7

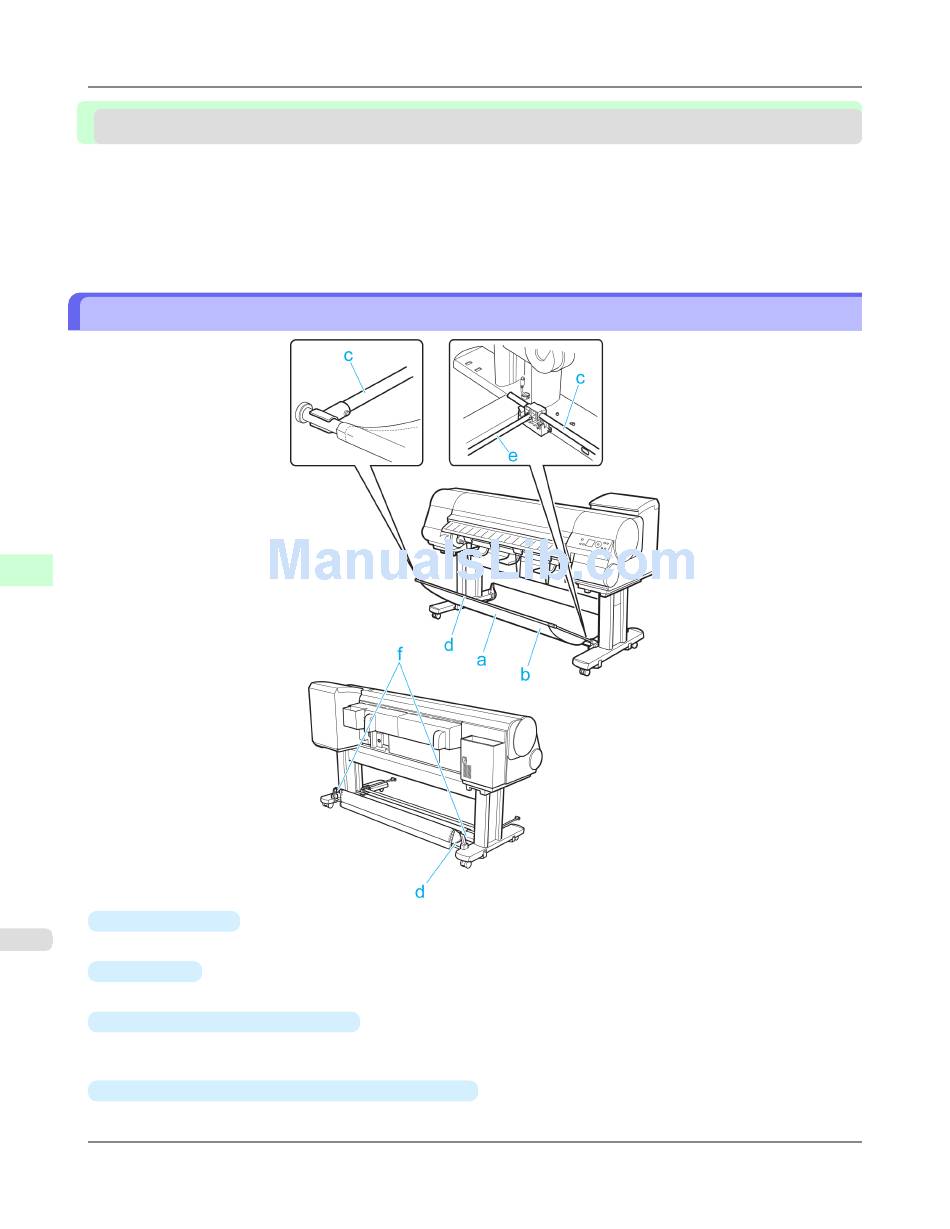

a. Output Stacker
658
A cloth tray that catches ejected documents.
b. White tag
A point of reference for attaching the Output Stacker in the right direction.
c. Basket Arm R and Basket Arm L
Holds the Basket Rod (tag side) attached to the Output Stacker. When the Output Stacker is not used, push it down and
store it next to the Stand Leg.
d. Basket Rod (tag side) and Basket Rod (cord side)
Holds the cloth Output Stacker securely in specific positions.
Stationary Output Stacker

Output Stacker

>
iPF815
