The Merlin Mail System (Back View) - AT&T MERLIN MAIL Implementation Manual

Vent
(Do not block)

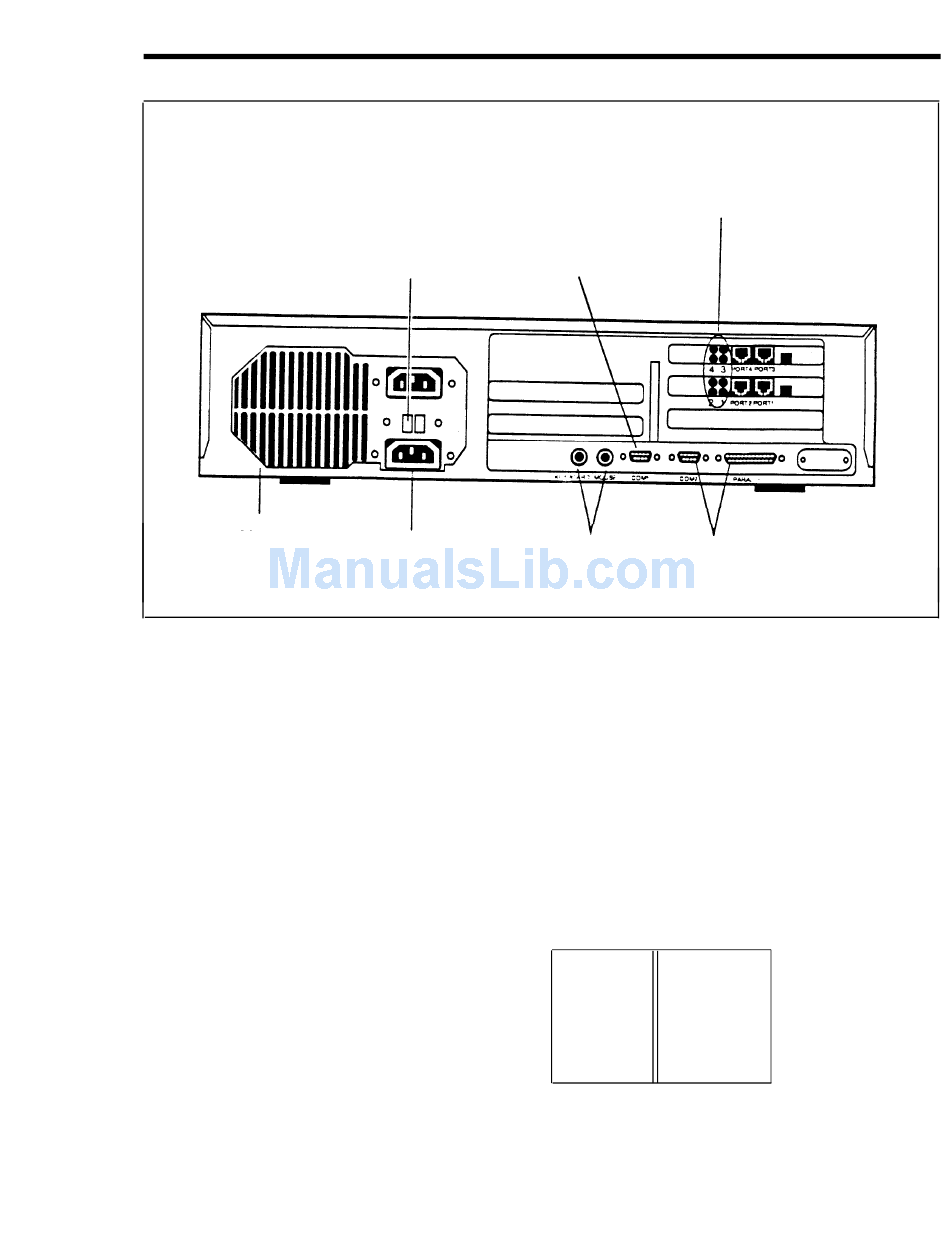

FIGURE 1-3 The MERLIN MAIL system (back view).
115V/230V Switch
(Set to 115V)
AC
Power In
Plug in the MERLIN MAIL system unit.
5
Power on the unit. (The on/off switch located on the
6
front of the unit on the lower right.)
Connect the other end of the line cords into station
7
jacks on the Basic Telephone (012) Module.
The modem (Remote Maintenance Device) comes
8
preset from the factory. Confirm that the switches,
located on the bottom of the modem, are set as follows:
All lights off = unit not functioning
Green on/Red off = Port ready
Green off/Red on = Port busy
Modem
Connector
Not
Not
Used
Used
on
1
6
off
2
7
off
3 8
on
4
9
off
5
10
Installing the MERLIN MAIL System
on
off
on
off
off
1-5
