The back view LEDs and buttons information display details regarding the LEDs and
buttons of the two I/O boards and AC power LED.
Rear Panel Button and LEDs
1. Rear UID Buttons
2. Rear UID LEDs
3. NIC 1&2 Activity LEDs
The following table provides detailed LED information.
LED Information
Feature
Power LED
6

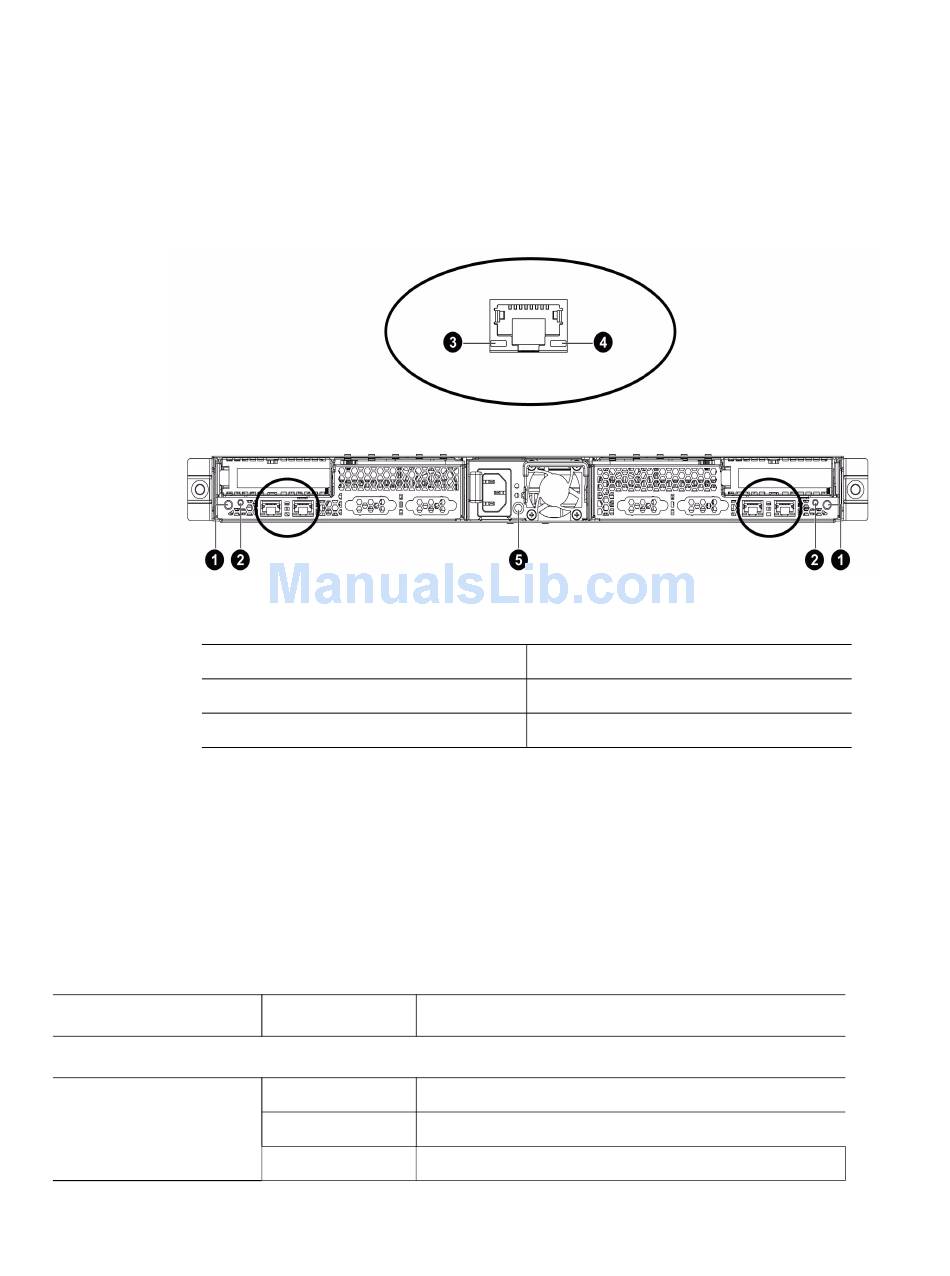

Figure 6. Back View LEDs and Buttons of Two I/O Boards
Table 2. LED Information
Color
Front View LEDs
Amber
On: System has AC power but in standby mode.
Green
On: System has AC power and is turned on.
-
Off: No AC power to the system.
4. NIC 1&2 Link LEDs
5. AC Power LED
Description
®
Intel
Server System SR1680MV Service Guide
