Procedure to install the rail kit

Note: Please follow the steps below before you install the rail:
1. To avoid a potential electrical shock hazard, a third wire safety grounding
conductor is necessary for the rack installation.
2. The equipment rack must provide sufficient airflow to the system to maintain
proper cooling.
Procedure:
1. Put the tighten screws2 into the washers.
2. Install the tighten screws2 with washers into the hole of the rails (Recommended
Driver Force: 5 lb-in).
102

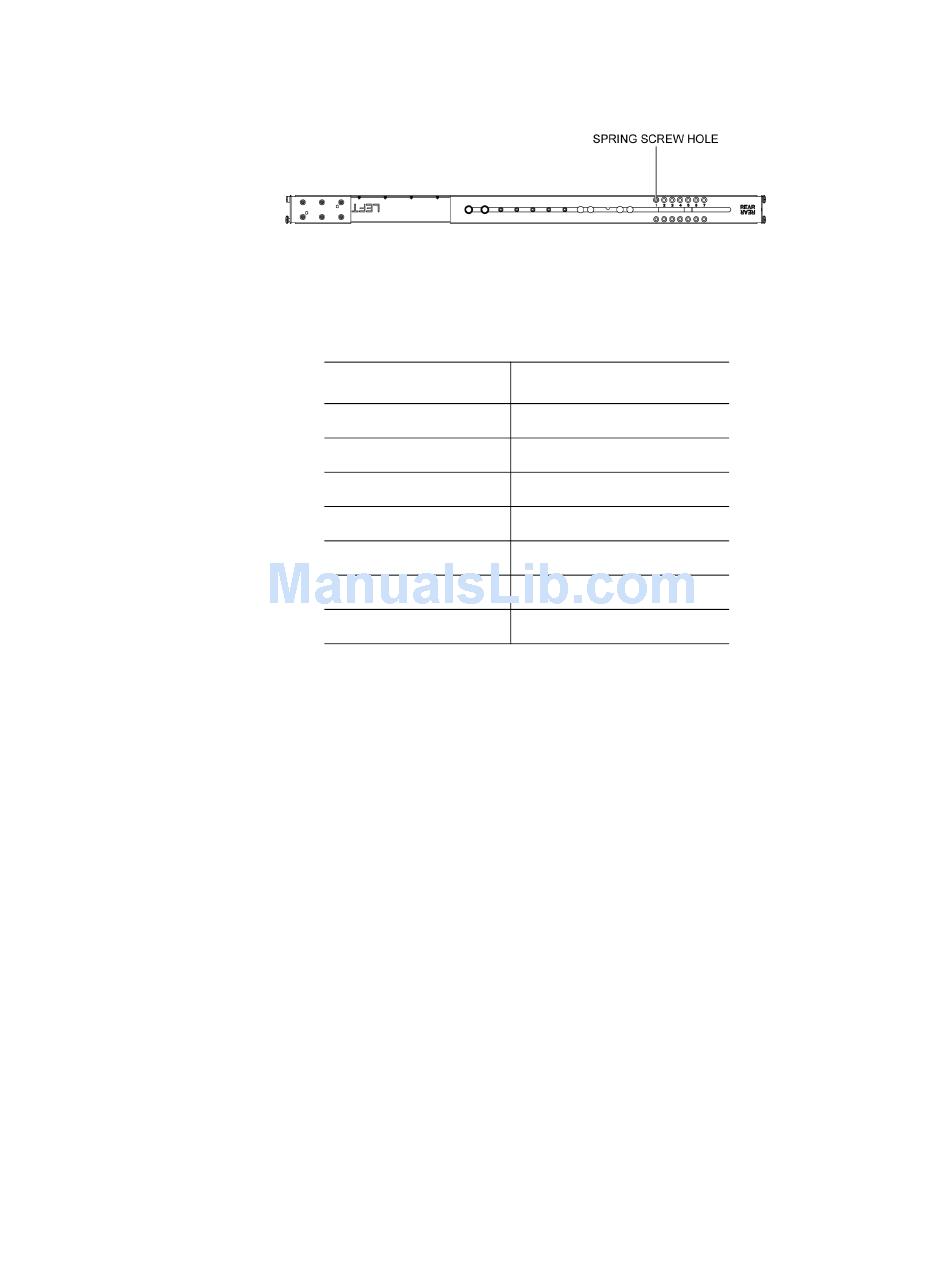

Figure 65. Location Of Spring Screw Holes

Table 45. Location and Adapt Depth for Racks

Sprong Secure Hole
HOLE 1
HOLE 2
HOLE 3
HOLE 4
HOLE 5
HOLE 6
HOLE 7
Adapt Depth For Racks
782.0~794.5 mm
769.5~782.0 mm
757.0~769.5 mm
744.5~757.0 mm
732.0~744.5 mm
719.5~732.0 mm
707.0~719.5 mm
®
Intel Server System SR1680MV Service Guide
