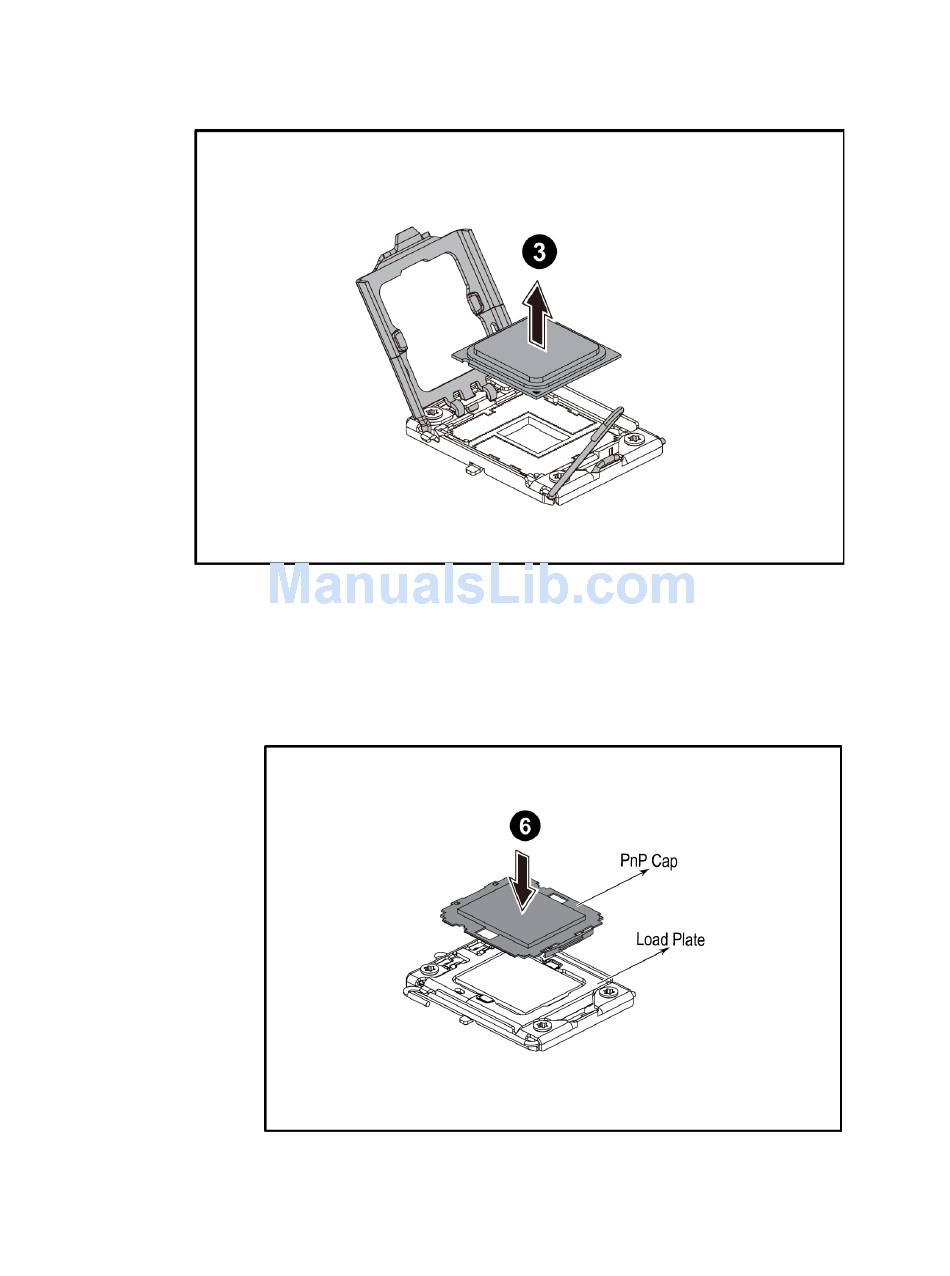

Figure 12. Lifting the Processor Out of the Socket

4. Place the PnP cap onto the load plate.

Figure 13. Placing on the PnP Cap

®
14
Intel
Server System SR1680MV Service Guide
