Server Board Components; Figure 7. Server Board Connector And Component Locations - Intel Server System R1000GZ Service Manual
Hide thumbs
Also See for Server System R1000GZ:
- Technical product specification (76 pages) ,
- Quick installation user's manual (20 pages)
Table of Contents
Advertisement
Server System Features
Server Board Components
This section helps you identify the components and connectors on the server board.

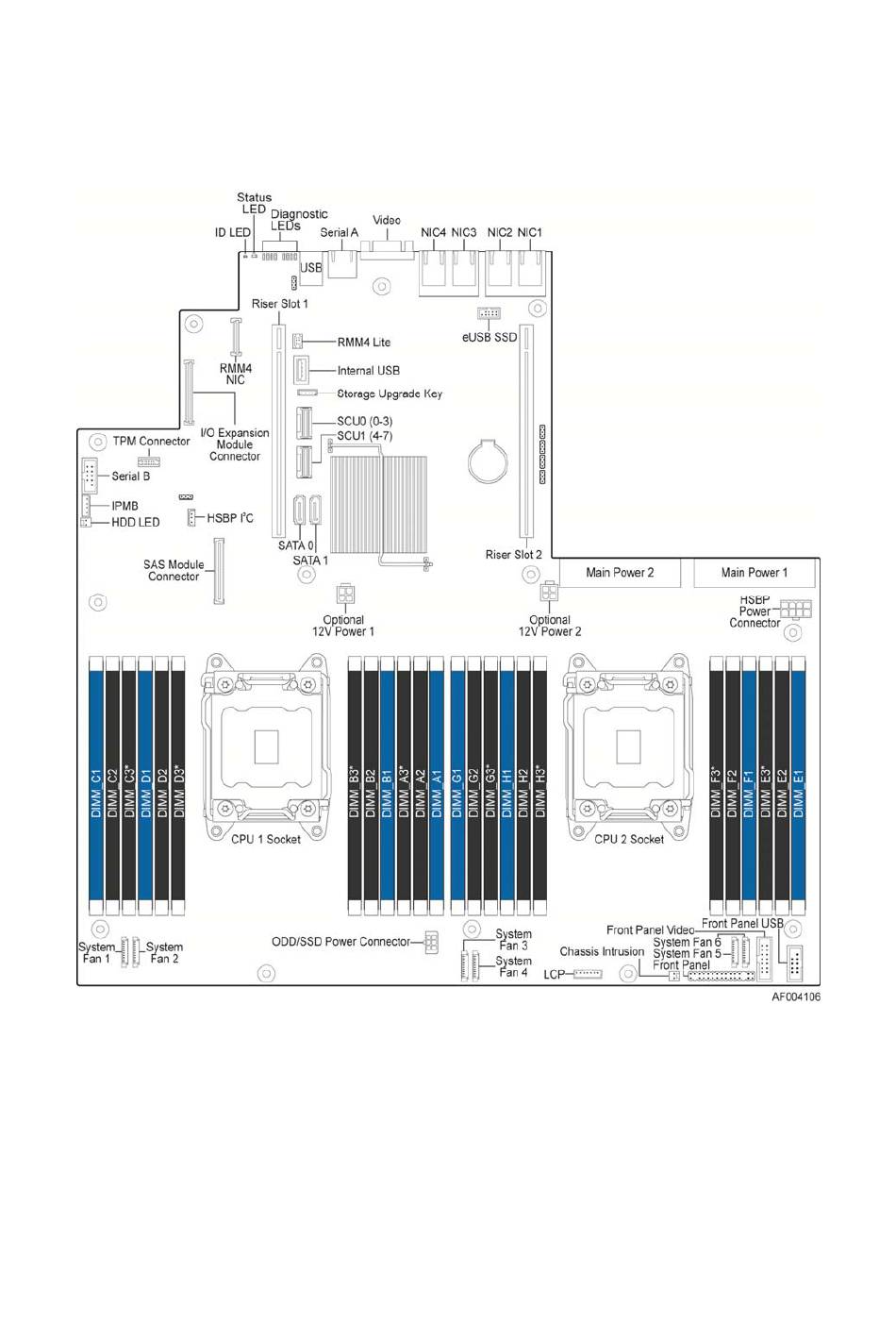

Figure 7. Server Board Connector and Component Locations
®
* For server systems integrated with Intel
Server Board S2600GZ only.
®
Intel
Server System R1000GZ/GL Service Guide
5
