System Mode

Wing Type Selection

ELEV D/R
The gear channel operates from the elevator dual rate
switch.
INHIBIT
The gear channel is inhibited and is centered making it
useful as a slave channel for mixing.
RIGHT SW
The gear channel operates from the right upper (flap)
switch.
Flight Mode
LEFT SW (default)
The flight mode operates from the left upper (gear)
switch.
AILE D/R
The flight mode operates from the aileron dual rate
switch
ELEV D/R
The flight mode operates from the elevator dual rate
switch.
RIGHT SW
The flight mode channel operates from the right upper
switch.

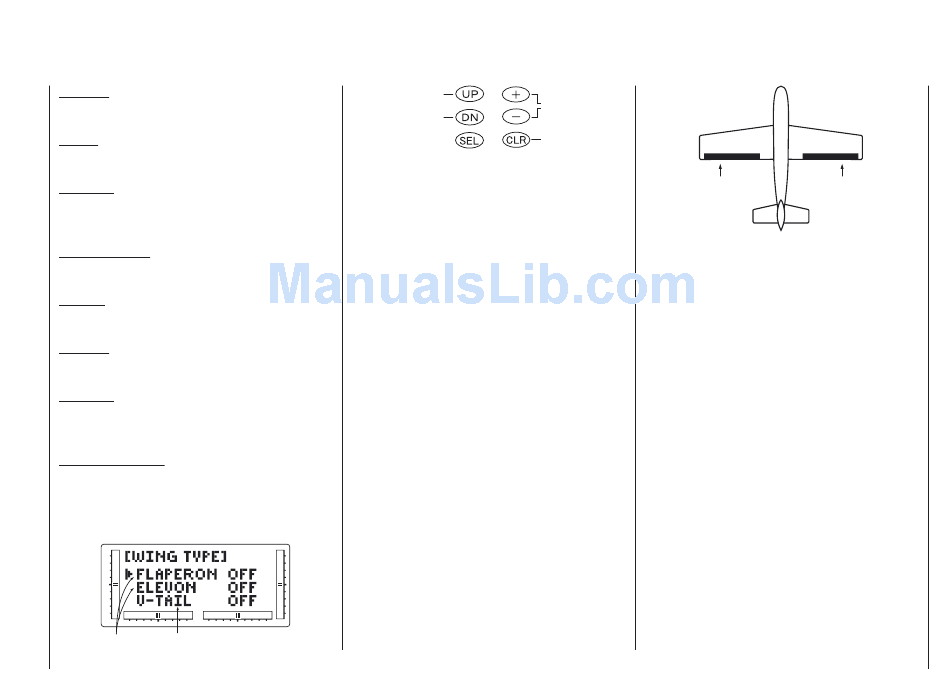

Wing Type Selection
There are three different wing types to choose from; se-
lect the one that will best suit your RC aircraft. Flaperon,
Elevon and V-Tail are available selections for Wing Type
and will be covered in the following pages.
Wing Type V-Tail indicator
Go to Model Select
menu
Go to Switch Select
menu
Definition of Wing Types
Normal
This is used with aircraft with one servo operating both
ailerons. This mode is the default setting and is active
when the Flapneron, Elevon and V-Tail modes are off.
Flaperon
This mode is used when two servos are used to
operated the ailerons. Flaperons allow each aileron
to be independently adjusted. In addition, they can be
programmed to move in the same direction for use as
flaps or spoilers.
Elevon
This mode is used for some types of delta wing aircraft
where the control surfaces function as both ailerons and
elevators.
V-Tail
Used for V-tailed airplanes
Note: Some function will be unavailable when certain
functions are active. With Flaperon active,
Elevon will be unavailable. With Elevon active,
both Flaperon and V-Tail will be unavailable.
Finally, with V-Tail active, Elevon will be unavai-
lable.
Flaperon Wing Type Selection
Flaperons allow you to use the existing ailerons as
flaps. The ailerons can be raised or lowered in unisonas
flaps, yet still remain fully operational as the ailerons of
your RC airplane.
Turn selected type
on or off
Return to Default
mode
Connect this servo to the
AUX 1 port of the receiver
Accessing and Utilizing the Flaperon Wing Type
Selection
1. While the Down and Select buttons are pressed,
move the power switch to the ON position to access
the System mode.
2. Press either the Up or Down keys until WING
TYPE appears in the upper area of the LCD.
3. Press either the (+) or (-) key to turnon the Flaperon
(FLPR) Wing Type Selection.
Note: For Flaperon, one servo must be used for each
aileron control surface.
4. Plug the left wing aileron servo into the Auxiliary
1 (AUX1) port of your JR receiver. Connect the right
aileron servo into the aileron port (AILE) of your
receiver.
5. Check to make sure that the wing servos move in
the proper direction. For a right turn, the right aileron
should raise while the left aileron lowers simultane-
ously. For a left turn, the opposite is true; the left
aileron should rise while the right aileron drops.
If your servos are not moving in the direction just
described, use the Servo Reversing function to
reverse the the travel direction of the servo(s) that
are moving improperly. Refer to the Servo Reversing
section for information on how to reverse the travel
Connect this servo to the
aileron port of the receiver
System Mode 41
