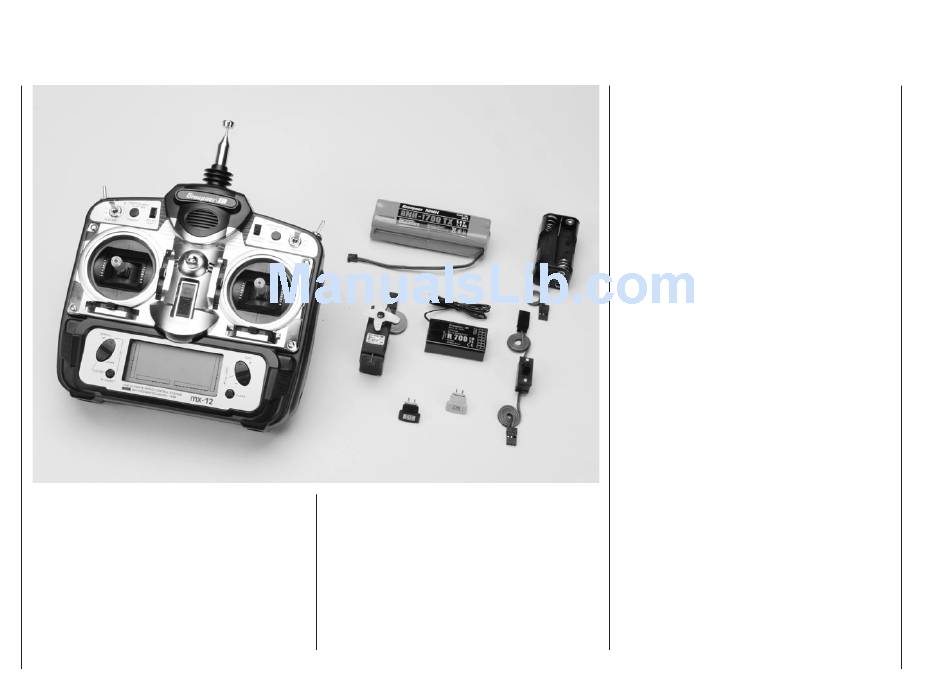

Computer system mx-12
6 channel digital proportional radio control system
Computer radio control system with 10 model
memories, incorporating high-level technology. Mo-
dern computer system for excellent reliability and
security. Simplified rotary programming technology
for straightforward programming.
6

Introduction

High-contrast graphic screen provides an accurate
display of the transmitter battery voltage, modu-
lation, model type, model name, model memory
number, set-up data, throttle and collective pitch
curves and model operating time.
• All-purpose radio control system, fully expanded as
standard
• High-quality radio control system for F3A, F3B, F3C,
F3D, F3E model aircraft, deltas and V-tail models.
Fully expanded, offering 6 channels: 4 proportional
channels with trims, 2 switched channels
• Convenient mode selector for simple switching
between stick MODES 1 - 4 (throttle right / left).
All mixer, set-up and reverse memory data are
automatically converted if you switch modes
• Convenient wing mixer programs:
DIFFERENTIAL FLAPERON (aileron differential
mixer), ELEVON (deltas: aileron-elevator mixer),
V-TAIL (V-tail models: elevator - rudder mixer)
• Convenient swashplate programs:
SWASHPLATE TYPE (swashplate: 1 servo, 2 ser-
vos 180°, 3 servos 120°, 3 servos 90°)
• 10 model memories, with transfer of all essential
programming and set-up parameters
• Compatibility with FM and FMsss (PPM) receivers
as well as SPCM receiving systems
• High-contrast Multi-Data-Display LCD screen provi-
des accurate monitoring even in bright sunlight;
screen displays information such as mixer input
data, set-up values, directions of rotation, trim
values, programming information in multi-function
programs, and transmitter battery operating voltage
• Wide range of mixer system, plus precisely vari-
able end point and centre positions, making the
system suitable for the demanding operator of model
aircraft, boats and cars.
• REVERSE function, programmable for six servos
• MONIT: servo travel monitor for six servos
• MODEL NAME and model number programmable
separately
