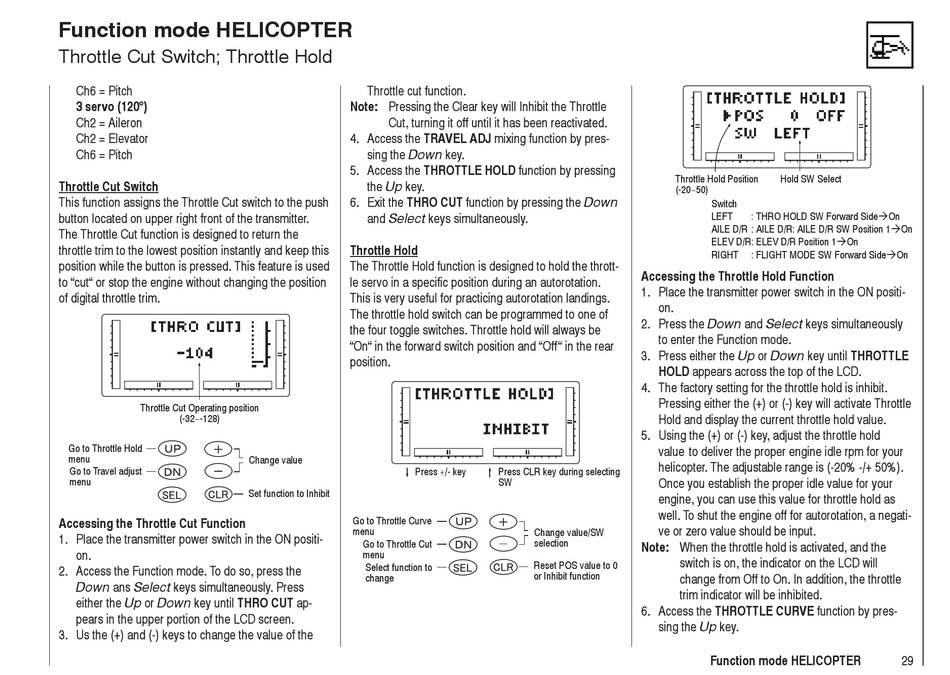

Function mode HELICOPTER
Throttle Cut Switch; Throttle Hold
Ch6 = Pitch
3 servo (120°)
Ch2 = Aileron
Ch2 = Elevator
Ch6 = Pitch

Throttle Cut Switch

This function assigns the Throttle Cut switch to the push
button located on upper right front of the transmitter.
The Throttle Cut function is designed to return the
throttle trim to the lowest position instantly and keep this
position while the button is pressed. This feature is used
to "cut" or stop the engine without changing the position
of digital throttle trim.
Throttle Cut Operating position
(-32~-128)
Go to Throttle Hold
menu
Go to Travel adjust
menu
Accessing the Throttle Cut Function
1. Place the transmitter power switch in the ON positi-
on.
2. Access the Function mode. To do so, press the
Down ans Select keys simultaneously. Press
either the Up or Down key until THRO CUT ap-
pears in the upper portion of the LCD screen.
3. Us the (+) and (-) keys to change the value of the
Throttle cut function.
Note: Pressing the Clear key will Inhibit the Throttle
Cut, turning it off until it has been reactivated.
4. Access the TRAVEL ADJ mixing function by pres-
sing the Down key.
5. Access the THROTTLE HOLD function by pressing
the Up key.
6. Exit the THRO CUT function by pressing the Down
and Select keys simultaneously.

Throttle Hold

The Throttle Hold function is designed to hold the thrott-
le servo in a specific position during an autorotation.
This is very useful for practicing autorotation landings.
The throttle hold switch can be programmed to one of
the four toggle switches. Throttle hold will always be
"On" in the forward switch position and "Off" in the rear
position.
Change value
Press +/- key
Set function to Inhibit
Go to Throttle Curve
menu
Go to Throttle Cut
menu
Select function to
change
Throttle Hold Position
(-20~50)
Accessing the Throttle Hold Function
1. Place the transmitter power switch in the ON positi-
on.
2. Press the Down and Select keys simultaneously
to enter the Function mode.
3. Press either the Up or Down key until THROTTLE
HOLD appears across the top of the LCD.
4. The factory setting for the throttle hold is inhibit.
Pressing either the (+) or (-) key will activate Throttle
Hold and display the current throttle hold value.
5. Using the (+) or (-) key, adjust the throttle hold
value to deliver the proper engine idle rpm for your
helicopter. The adjustable range is (-20% -/+ 50%).
Press CLR key during selecting
Once you establish the proper idle value for your
SW
engine, you can use this value for throttle hold as
well. To shut the engine off for autorotation, a negati-
ve or zero value should be input.
Change value/SW
selection
Note: When the throttle hold is activated, and the
Reset POS value to 0
or Inhibit function
6. Access the THROTTLE CURVE function by pres-
sing the Up key.
Hold SW Select
Switch
LEFT : THRO HOLD SW Forward SideOn
AILE D/R : AILE D/R: AILE D/R SW Position 1On
ELEV D/R : ELEV D/R Position 1On
RIGHT : FLIGHT MODE SW Forward SideOn
switch is on, the indicator on the LCD will
change from Off to On. In addition, the throttle
trim indicator will be inhibited.
Function mode HELICOPTER 29
