Function mode HELICOPTER

CCPM Swashplate Mixing

ection of travel to be adjusted, press the (+) or (-)
key until the proper amount of servo travel is shown
on the LCD. Press the (+) key to increase the
amount of servo travel. Press the (-) key to decrease
the amount of servo travel.
7. Follow the same procedure for the remaining chan-
nels.
8. Access the SUB TRIM function by pressing the
Down key.
9. Access the THROTTLE CUT function by pressing
the Up key.
10. Exit the TRAVEL ADJ function by pressing the
Down and Select keys simultaneously.

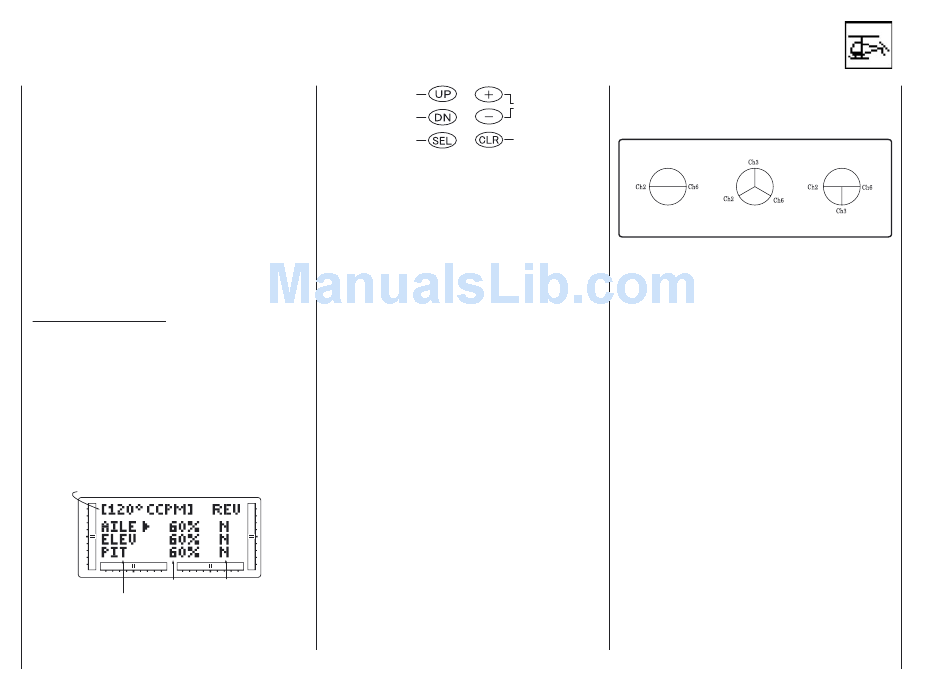

CCPM Swashplate Mixing
The CCPM Swashplate Mixing Function (Cyclic
Collective Pitch Mixing) of the mx-12 is designed to be
used in model helicopters that utilize 2-servo (180°), 3-
servo (120°) and 3-servo (90°) type swashplate control
system.
The desired swashplate mixing type must first be selec-
ted at the Swash Type Selection in System Mode.
If the Swashplate Type option has not been selected,
proceed to Throttle Cut section.
Indicates the CCPM type selected
Mixing value
Channel
(-125%~+125%)
AILE 1: Aileron
ELEV 2: Elevator
PIT 3: Pitch
28 Function mode HELICOPTER
Go to the Throttle Cut
menu
Go to the Travel Ad-
justment menu
Return highlighted
value to default
Note: The CCPM Swashplate Mixing screen is only
displayed when Swashplate types 2Serv,
3Serv, or 4Serv CCPM are selected in the
Swashplate type Selection in System Mode.
Accessing the Swashplate Type
1. Place the transmitter power switch in the ON positi-
on.
2. Access the Function Mode by pressing the Down
and Select keys simultaneously.
3. Press either the Up or Down key until 90° CCPM,
120° CCPM or 180° CCPM appears in the middle
left portion of the LCD.
Note: The swashplate type selection is selected in the
System mode on Page XX.
4. Press the Select key until the desired function is
highlighted.
5. Press the (+) or (-) Keys to Increase or Decrease the
CCPM Values.
6. Follow the same procedure for the remaining chan-
nels.
7. Access the TRAVEL ADJ function by pressing the
Down key.
8. Access the THROTTLE CUT function by pressing
the Up key.
9. Exit the CCPM SETUP screen by pressing the
Down and Select keys simultaneously.
Indicates servo
reversing
CCPM is a type of pitch mixing where the two or three
servos are connected directly to the swashplate of the
helicopter and physically move together and indepen-
Increase/decrease
dently for all changes in pitch/cyclic. Please refer to the
value or change
diagram below.
reversing value
Return highlited
value to default
2 Servo/180° CCPM
1.) One servo (Standard Mechanical Miying)
The most common form of Swashplate Mixing.
This type uses each of the three servo to move the
swashplate individually for pitch, Aileron and Eleva-
tor changes. If one servo (NORM) is selected in the
System Mode (Factory Default), the Swashplate
Type Function will not appear on the LCD screen in
this section.
2.) Two servo (180-degrees)
Two servos are used to move the swashplate, and
are spaced at 180 degrees apart. This is not a very
common control system configuration.
3.) Three servo (120-degrees)
Three servos are used to move the swashplate , and
are spaced at 120 degrees apart. This is the most
common form of CCPM, and is found in Graupner
and other brands of Helicopters.
4.) Three servo (90-degrees)
Three servos are used to move the swashplate, and
are spaced at 90 degrees apart. This is also not a
very common control system configuration.
CCPM Servo Connection/Channel Numbers
2 servo (180°)
Ch2 = Aileron
Ch2 = Elevator
CCPM Servo Variations
3 Servo/120° CCPM 3 Servo/90° CCPM
(Graupner style, most popular)
