System mode
To enter the System mode, press the Down and
Select keys simultaneously, then turn the power switch
to the ON position. The display will show the last active
program. Pressing either the Up or Down key then
scrolls through the functions one by one, according to
the system mode flowchart is shown to the right. Once
the appropriate function is displayed, changes can be
made by pressing the (+) or (-) keys.

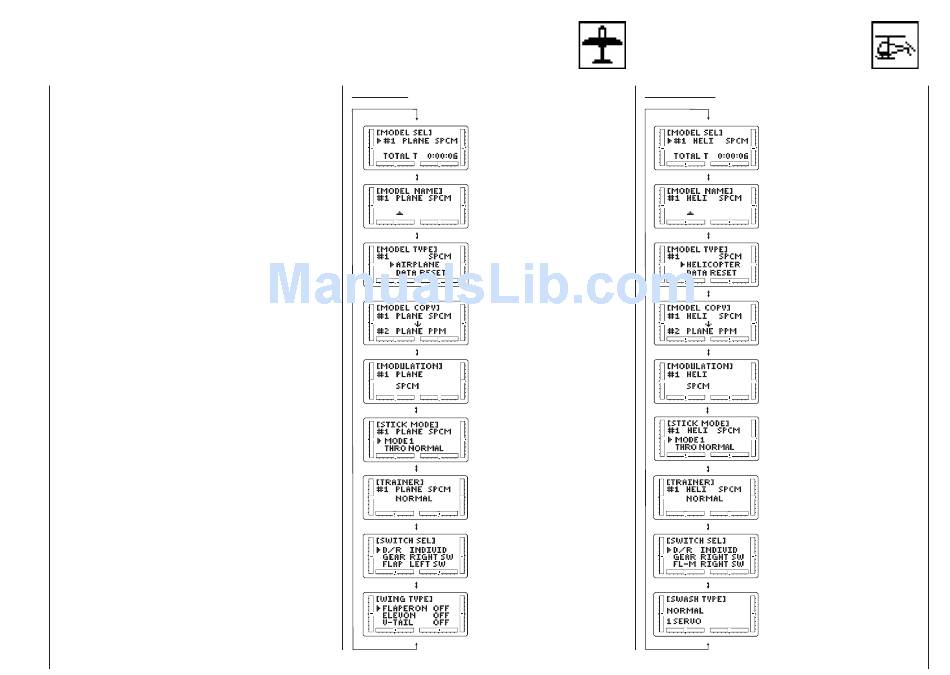

System Mode Flowchart
Information pertaining to each function is explained on
the page listed next to the function name. Functions will
appear in the same order they are shown on this chart.
Accessing the System Mode
1. Press the Down and Select keys simultaneously.
2. Move the power switch to the ON (upper) position.
3. Use either the Up or Down key to scroll through
the menu and access the applicable function.
AIRPLANE
26. MODEL SELect
27. MODEL NAME
28. MODEL TYPE
& Data reset
29. MODEL COPY
30. MODULATION
31. STICK MODE
32. TRAINER
33. SWITCH SELect
34. WING TYPE
HELICOPTER
26. MODEL SELect
27. MODEL NAME
28. MODEL TYPE
& Data reset
29. MODEL COPY
30. MODULATION
31. STICK MODE
32. TRAINER
33. SWITCH SELect
34. SWASH TYPE
System mode
17
